This machine has been sold-Please contact us for similar machines
SOLD-6000-Watt Trumpf TruLaser 3030 Laser Cutting System
equipped with LiftMaster Compact Load/Unload Automation
new in 2017
Machine Number 1181
Request Quote

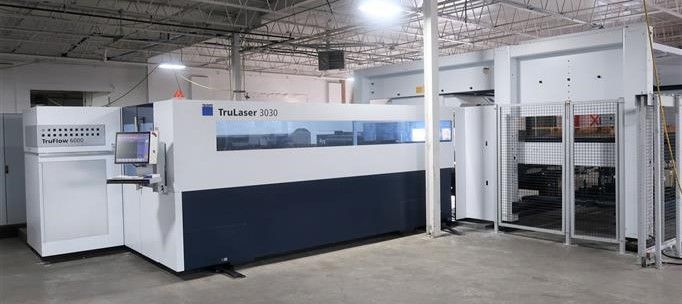

Trumpf TruLaser 3030
The Trumpf TruLaser 3030 is the updated version of the popular TCL-3030 laser, the “workhorse” of the Trumpf laser lineup. The TruLaser is a versatile and reliable 5’ x 10’ laser cutting system equipped with a high precision torque drive in combination with direct linear drives for high speed, high precision, material processing. This machine features Trumpf’s TruFlow 6000-Watt resonator for efficient processing of materials up to one inch thick and is equipped with a compact LiftMaster load/unload system.
Specifications
Working Range:
X-Axis: 3000 mm (10′)
Y-Axis: 1500 mm (5′)
Z-Axis: 115 mm (5″)
Maximum Material Thickness with TruFlow 6000:
Mild Steel: 25 mm (1″)
Stainless Steel: 25 mm (1″)
Aluminum: 15 mm (3/5″)
Maximum Simultaneous Axis Speed: 140 m/min (~ 5500 IPM)
Equipped With
TruFlow 6000 Resonator
Automatic Pallet Shuttle System
LiftMaster Compact Material Load/Unload Automation
Chiller
Dust Collector
