Sold-6000-Watt Mitsubishi ML-3015eX CO2 laser
Manufactured in 2014

Only ~ 4844 discharge hours!

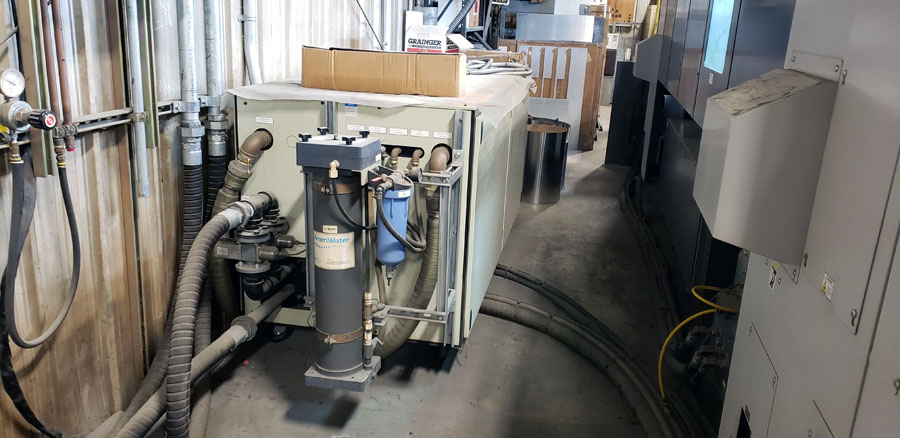

460-ML-3015eX-6k-chiller

Image 4 of 4

Request Quote

Mitsubishi ML-3015eX Laser

The Mitsubishi ML-3015eX is the most current CO2 laser in Mitsubishi’s line of high performance laser cutting machines. It is the successor to the popular LVP series and continues its tradition of reliability, but with more productivity thanks to a faster motion system and updated features. If you are looking for a top of the line CO2 laser system, this is the best Mitsubishi laser you can buy.

Processing Machine Specifications

Machine structure: X/Y Precision Rack & Pinion – Z=precision ball screw
Travel drive method: X-Y-Z simultaneous 3 axes (Z-axis height control is also possible)
Maximum workpiece size: 120.1 x 60.0
Table pass height: 34.6
Processing access: Automatic up/down door
Pallet changer: Provided
X-axis stroke: 122
Y-axis stroke: 61
Z-axis stroke: 5.9
Rapid travel speed (X,Y) inches per minute: 3940/5550 simultaneous
Maximum processing federate, inches per minute: 1970
Positioning precision: 0.0019/20 (X,Y), 0.0039/4 (Z)
Drive motor  type: Intelligent AC servo
Maximum workpiece weight: 2050 lbs.

Control System Specifications:

CPU: 64-bit
Display screen: 15” TFT color LCD touch screen
Hard disk: 20.0 GB
Generator output control: Output power, frequency, duty
Generator operation control: Beam on/off, laser gas charge, etc.
Drive system: X,Y,Z simultaneous control
Position detection system: Encoder
Minimum command input: 0.001 mm / 0.001”
Program input system: USB Computer Link, ethernet LAN

Pallet Changer Specifications:

Drive mechanism: Chain
Pallet  change time (Sec.): Approximate 30
Work clamps: 2 sets on Y Axis
Pallet  capacity: 2050  lbs.
Applicable machine size: 3015 (5’ x 10’)

Laser Resonator Specifications:

Model: Mitsubishi 60CF-R
Excitation method: 3-axis cross flow, SD
Control method: Power feedback
Power stability: +/- 1%
Beam model: low-order (main component TEM01)
Beam outer diameter: 1.06″
Beam divergence: Approximately 3.5″ or less (total angle)
Wave length: 10.6 microns
Frequency setting range: 10~3000 %
Duty range: 0~100% of rating
Resonator unit dimensions: 131.9″ L x 78.1″ H x 31.5″ wide
Resonator unit weight: 6615 lbs.
Rated output power (CW): 6000 watts
Composition CO2: CO:N2:He: 8:4:60:28
Consumption amount: 4.5 liters per hour
Gas sealing time: 24 hours (during rated continuous oscillation)
