SOLD-4000-Watt Amada FOM2-3015NT Laser Cutting System
Manufactured in June 2011
~ 49,740 cutting hours as of November 2023
Turbo replaced at ~ 47,000 hours
Request Quote

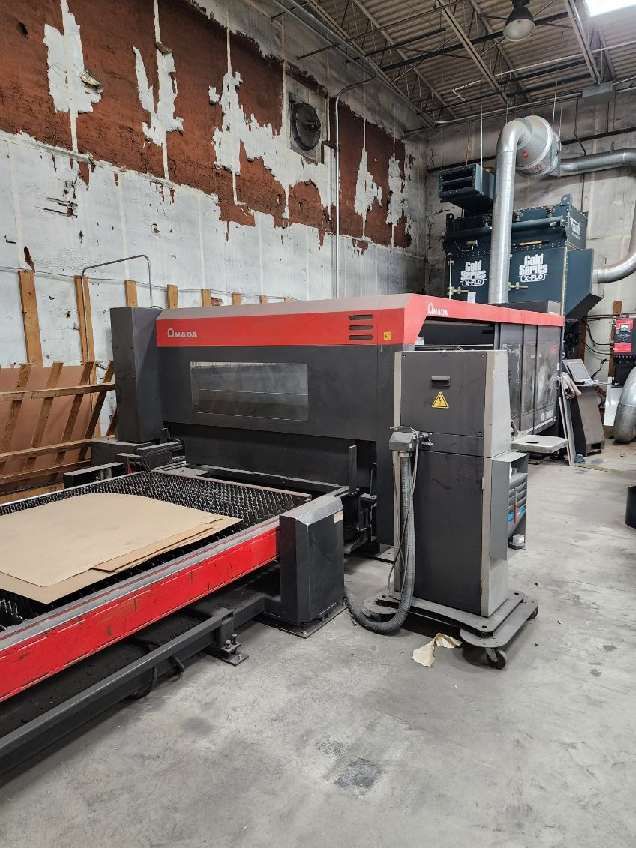

The Amada FOM2-3015 NT laser
The FOM2 lasers combined the rock solid reliability the FO series is known for with increased capabilities and additional features such as reduced setup and secondary operations, increased throughput and consistency, a new resonator design and splatter free piece for better piecing of thick material. The FOM2 is Amada’s most versatile CO2 laser cutting machine.
Motion package
Travel method: X & Y – axis beam move
Drive method: X Rack & Pinion, Y & Z Ball screw
Work area
X= 121″
Y= 61″
Z= 7.87″
Maximum thickness
7/8″ mild steel
1/2″ stainless steel
3/8″ aluminum
Maximum work weight: 2000 lbs
Rapid traverse
X & Y: 3,150 inches per minute
Simultaneous: 4455 inches per minute
Z: 2, 362 inches per minute
Repeatability: +/- 0.0002″
Z-axis sensor: HS-2007
CNC: AMNC PC-OS; windows embedded
Assist gas control: Automatic select
Oscillator: AF4000iB-4000 watt
Approximate machine weight: 34, 216 lbs (includes shuttle tables)
Power requirements: 200/220V +/- 10% 50/60 Hz
CNC controller
Model: AMNC -PC
Display: LCD color graphics display
Control function
X,Y,Z-axis simultaneous and focus lens B-axis, adaptive optic and laser power control (CW, gated pulse, pierce routines, etc.)
Data input method: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5″ floppy disk
Minimum command unit: 0.0001″ (X,Y,Z)
Minimum travel unit: 0.0001″ (X,Y,Z)
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes: Program contents, position information, program check, settings, parameters, beam diameter compensation, assist gas status, self diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status beam power, resonator discharge, door open, WACS
Equipped With:
Nozzle Changer
Chiller
Dust Collector
