SOLD-4000-Watt Amada FO-3015NT Laser
Manufactured in May 2004
Request Quote
Amada FO-3015NT
Amada FO series is known for its reliability. This machine is equipped with 5′ x 10′ shuttle tables and a Fanuc 4000-Watt resonator.
Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 61″ (Y) x 122.8″ (X)
Maximum Axis Travel: 61″ (Y) x 122.8″ (X) x 7.87″ (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis (4,554 inches per minute 45o vector.
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004″/20″
Maximum Material Weight: 1,875 lbs.
Assist Gas: 4 ports with NC pressure Control
Machine Footprint: 385″ x 107″
Machine Weight: 12 Metric Tons
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA
CNC Controller
Model AMNC-F
Display: LCD Color Graphics Display
Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2″ Floppy disk
Minimum Command Unit: 0.0001″ (X, Y, Z)
Minimum Travel Unit: 0.0001″ (X, Y, Z)
Standard Memory: 2 MB
Hard Drive: 10 GB
Operating Modes: Automatic and Manual
Display Modes: Program Contents, Position Information, Program Check, Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock Displays: Cooling Water Status, Gas Pressure Status, Vacuum Status, Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge, Door Open, WACS.

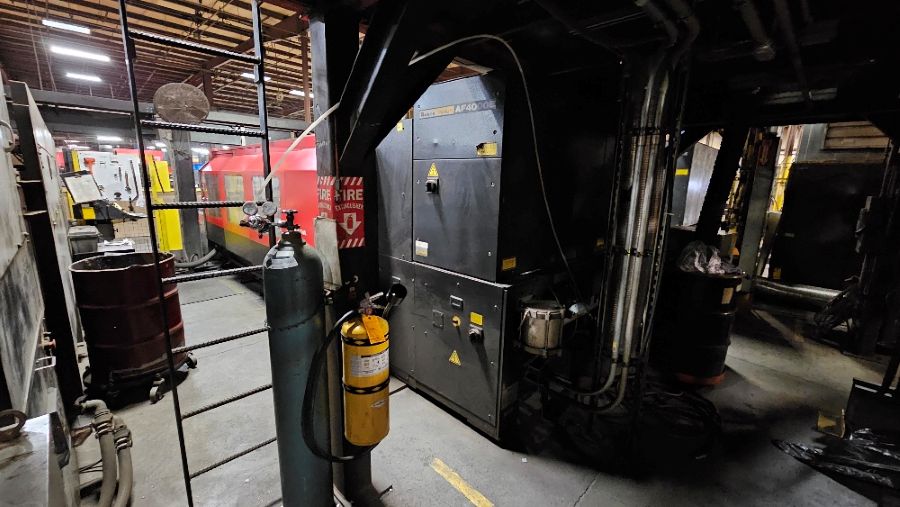

Laser Specifications AF 4000E Oscillator (Resonator)
CW Power: 4,000 Watts
Peak pulse power: 5,000 Watts
Maximum material thicknesses
Carbon steel: 0.75″
Stainless steel: 0.375″ CleanCut (TM)
Aluminum: 0.375″
Equipped with
Chiller
Dust Collector
