SOLD-2000-Watt Amada Quattro CO2 Laser Cutting System
Manufactured in 2007
Request Quote

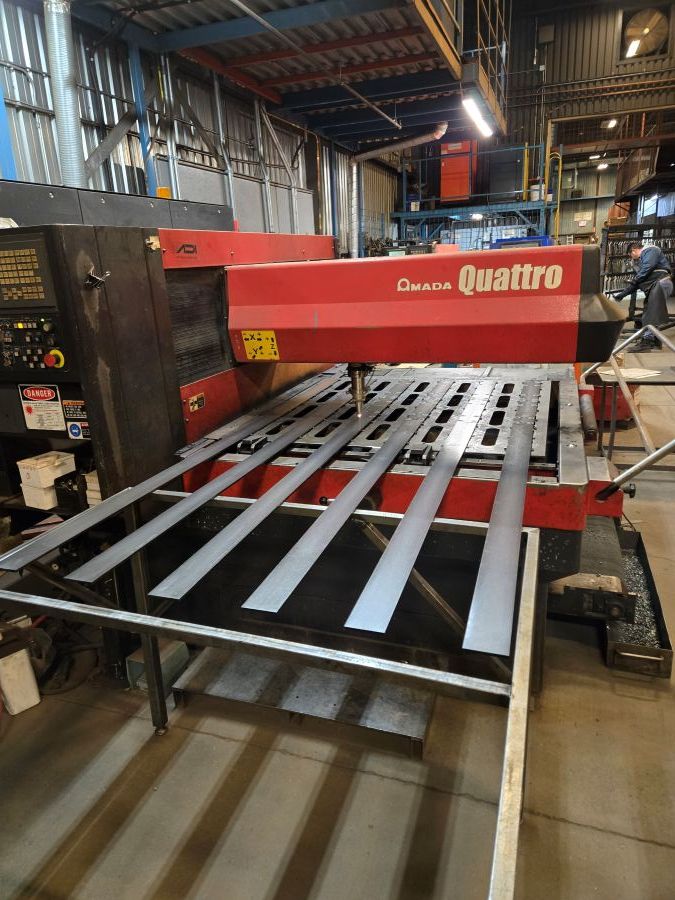

Amada Quattro Laser Cutting System
The Quattro laser processing machine is a completely new design combining the latest developments in machine, computer numerical control and laser resonator technologies. This machine is equipped with the 2000-Watt Fanuc Oscillator, 4′ x 4′ table, and a Fanuc 160iL control.
Specifications
Travels
X axis: 49.6”
Y axis: 49.6”
Z axis: 1.4”
Beam delivery system: Flying optics
Maximum Axis Speed
X,Y 1181”/min (30 m/min)
Z, 590”/min (15 m/min)
Rated laser output: 2000 watts
Peak Pulse Power: 2700 watts
Maximum Material Thickness:
Carbon Steel: .500”
Stainless Steel: .187”
Aluminum: .125”
Maximum sheet size: 4’ x 4’
Maximum load weight: 176 lbs.
Machine weight: 8,488 lbs
Approximate dimensions: 122” L x 86” W x 65” H
Equipped with
Fanuc 160iL control
Chiller
Dust Collector
