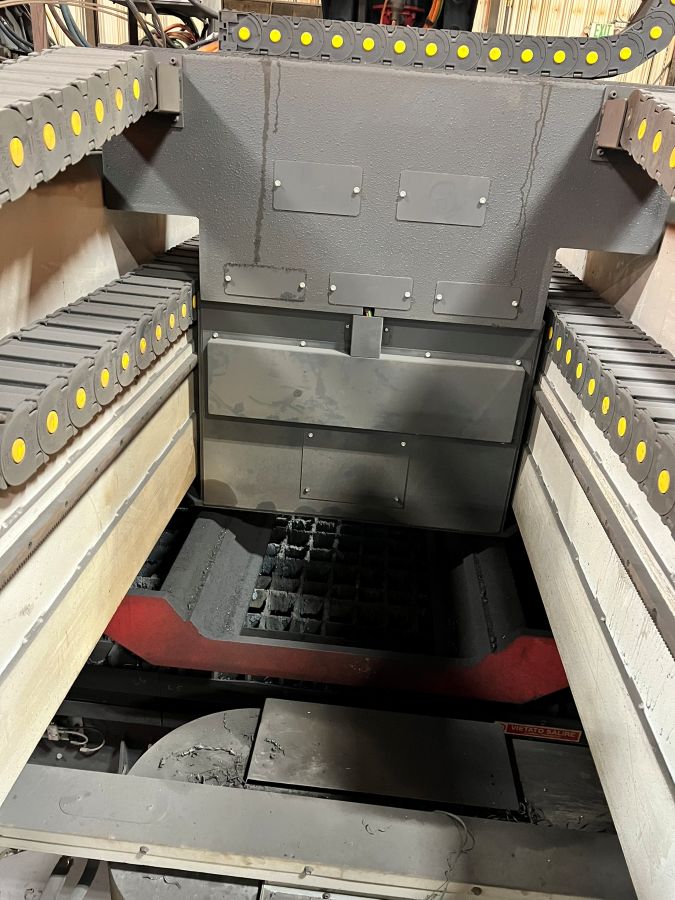

SOLD-Ficep Gemini 36 HD CNC Gantry Drilling, Milling, and Thermal Cutting Machine
Manufactured in 2018
Machine Number 1195
Request Quote
Specifications
Specifications for stock plate to be processed (entry side)
Length: Minimum: 49-1/4”
Maximum: 40’
Width: Minimum: 31-1/2”
Maximum: 141-3/4”
Specifications of the finished part (exit side)
Length: Minimum: 4”
Width: Minimum: 4”
Drilling Capacities
Vertical drill heads: 1
Spindles per vertical drill head: 1
Maximum hole diameter that can be drilled (milled): 1-9/16” (15-3/4”)
Minimum plate thickness: ¼”
Maximum thickness that can be drilled: 5”
Other Specifications
Spindle motor power (at S3 rating): 35 HP
Spindel rotation speed with continuous adjustment from program: 250 – 6000 RPM
Maximum longitudinal transferring speed: 66 FPM
Cross positioning speed: 105 FPM
Passline height: 25-1/2”
Features with thermal cutting options (mild steel)
Maximum thickness of the plate for HPR400XD
Production Cutting: 2”
With edge start cutting: 3-1/8”
With bevel cut at 45° – production cutting: 1-1/2”
With bevel cut at 45° – edge start cutting: 2-1/4”
Monospindle Vertical Drill Head
One vertical drill head (positioned on the zero reference side) with the following specs:
Spindle connection size: ISO 40
Maximum hole size: 1-9/16”
Maximum longitudinal dimension for milling operations on U axes: 13-1/2”
Cross positioning: 141.7”
Spindle motor power (at S3 rating): 35 HP (42 HP based upon max. power one minute peak)
Rotation speed (Scribing): 250 – 6000 (7000) RPM
Cross Slide (Y axis)
* Cross positioning system with precision gear reduction, rack and pinion equipped with automatic clamping device, suitable to clamp the whole material width in order to process a 15-3/4” area without moving the mobile gantry.
* Rack and pinion positioning system parallel to the principal moving axis to carry out milling operations.
Tool Change System with 24 positions for drilling unit
Tool change system for the drill having the following specifications
Connection: ISO 40
Tools stored in tool changer: 24
Thermal Cutting Unit
Plasma Cutting System with HPR400XD
*This power source enables the processing of thickness up to 2” (maximum thickness with edge start: 3-1/8”)
*The system includes the automatic gas control panel for automatic regulation of gas flow rate. It also monitors the main cutting parameters which are displayed on the operator’s panel
