Prima Power Panel Bender Model: BCe Smart 2220 Servo-Electric Bending Cell
Manufactured in 2018
Machine Number 1193
Request Quote
Prima Power BCe Smart Bending Cell
The BCe Smart bending cell is an innovative bending solution thanks to the “safety integrated” concept that allows the operator to focus only on value-added operations, aided by visual devices and sound signals. Its compact layout and combined loading and unloading sequence guarantee high productivity,
constituting a very important investment for anyone looking for a flexible and semi-automatic panel bender.
Specifications
Maximum Bending Length: 2250 mm
Minimum Bending Length (with re-entering bends): 350 mm
Minimum Bending Length (without re-entering bends): 215 mm
Minimum Width between the Bends: 160 mm
Sheet Length (minimum/maximum): 215 mm/2850 mm
Sheet Width (minimum/maximum): 180 mm/1500 mm
Maximum Panel Diagonal: 3000 mm
Maximum Bending Height: 204 mm
Vertical Distance between the Blades: 210 mm
Maximum re-entering Bend: 55 mm
Maximum Acceptable Planarity of the Blank: 10 mm
Bending Force: 32 Ton
Sheet Clamping Force: 52 Ton
Maximum Material Thickness
Steel UTS 410 N/mm²: 2.5 mm Max Length / 3.00 mm Max
Stainless Steel UTS 680 N/mm²: 1.8 mm Max Length / 2.00 mm Max
Aluminum UTS 265 N/mm²: 3.5 mm Max Length / 4.00 mm Max
Minimum Information
Minimum Thickness: 0.5 mm
Minimum External Radius: 1.5 / 2 times the thickness of the sheet
Minimum Height of the 1st Bend: 5 Times the thickness of the sheet
Electrical Information
Un: 3 x 400V
In: 3 x 43A
Frequency: 60 Hz
Icu: 10 kA
Full Load Current: 85 A
Equipped With

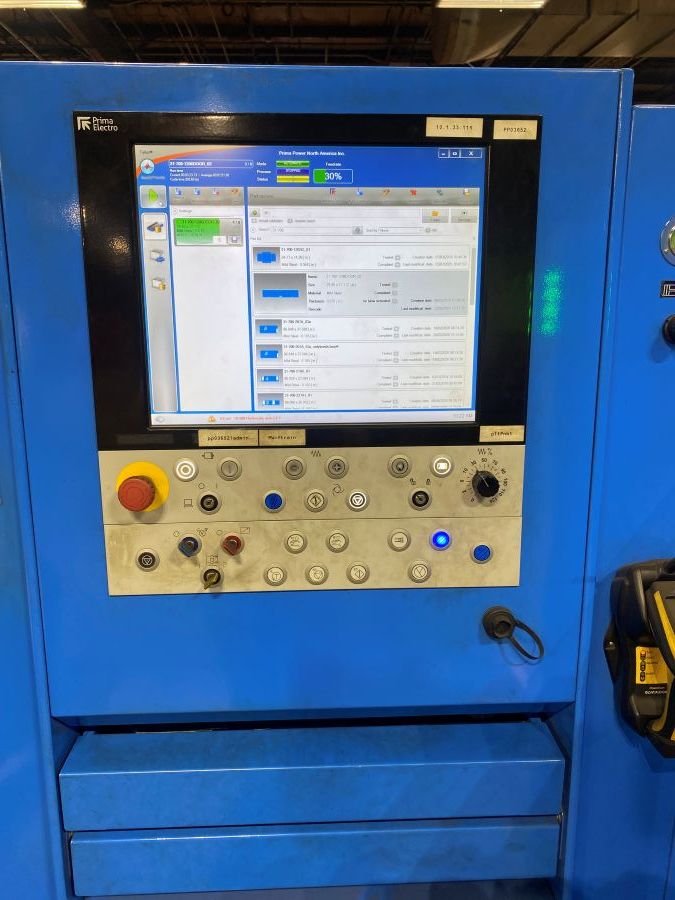

Prima Power Control
