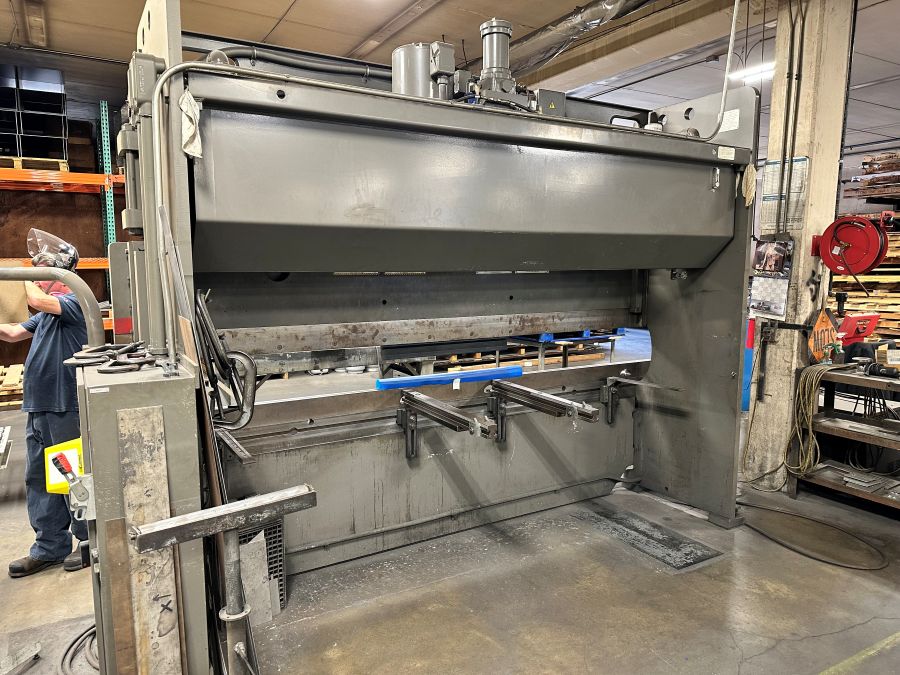

90 Ton x 12′ Cincinnati 90CBII-10 Press Brake
Machine Number 1305
Cincinnati CB II Series Press Brake
The Cincinnati CB II press brake series is the updated version of the popular CB press brake series, with the same reliability all Cincinnati brakes are known but equipped and priced for shops needing a basic style machine. The CB II is faster than the original CB and features a Cincinnati control and backgauge.
Specifications
Max Tonnage: 90 Tons
Length Overall: 12’
Length between Housings: 10’ 6-1/4”
Stroke Length: 8″
Throat depth: 7″
Open Height: 15″
Closed Height: 7″
Ram Speed IPM
High Approach: 260
Forming speed: 10-80
Return: 280
Motor Horsepower: 15
Machine Weight: 20,000 lbs.
