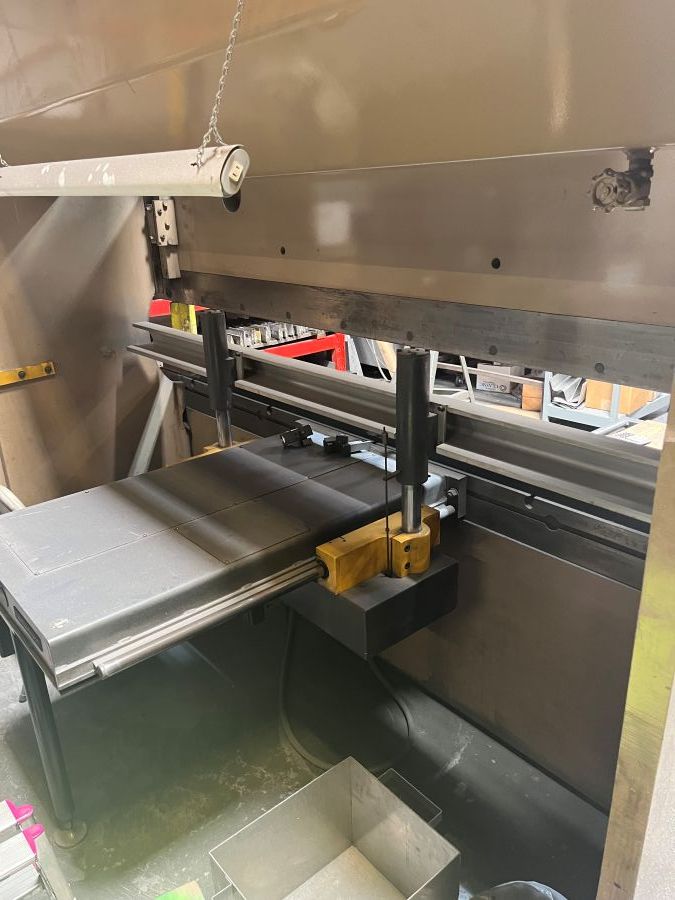

90-Ton x 10′ Cincinnati 90CBII8 Press Brake
Manufactured in 1998
Machine Number 1347
Request Quote
CB II Series Press Brake
The Cincinnati CB II press brake series is the updated version of the popular CB press brake series, with the same reliability all Cincinnati brakes are known but equipped and priced for shops needing a basic style machine. The CB II is faster than the original CB and features a CNC Cincinnati control and backgauge.
Specifications
Max Tonnage: 90 Tons
Length Overall: 10’
Length between Housings: 8’ 6-1/2”
Stroke Length: 8″
Throat Depth: 7″
Open Height: 15″
Closed Height: 7″
Motor Horsepower: 15
Machine Weight: 15,800 lbs.
Ram Speed
High Approach: 260 IPM
Forming Speed: 10-80 IPM
Return: 280 IPM
