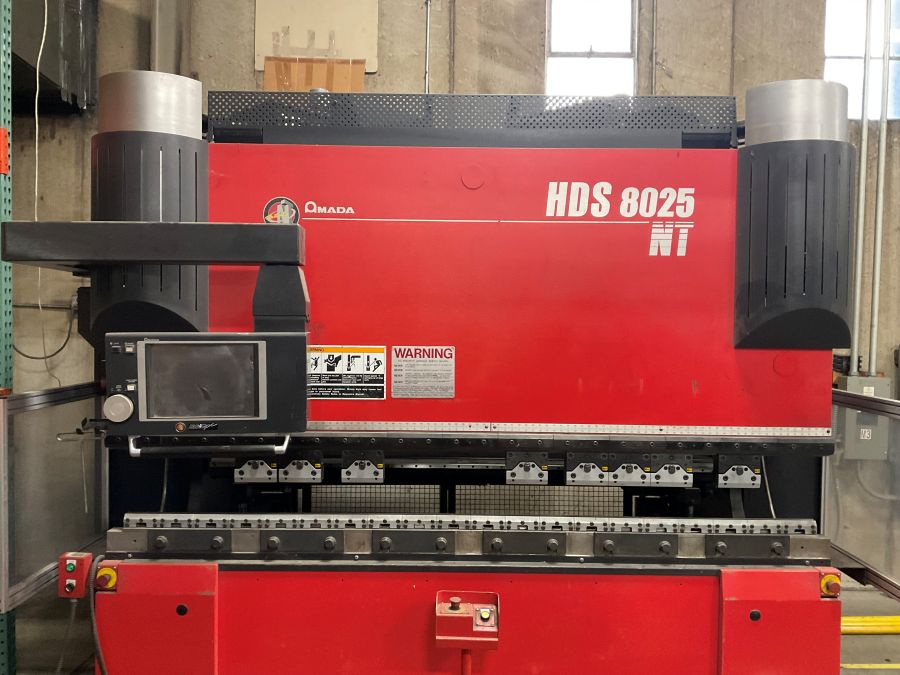

88-Ton x 8′ Amada HDS-8025NT “Down-Acting” Press Brake
Manufactured in 2008
Machine Number 1262
Request Quote
Amada HDS Hybrid press brake
The Amada HDS NT series are Servo Hydraulic Hybrid press brakes for ultra high precision positioning and bending. This system uses independent AC-servo motors to drive high efficiency, bi-directional hydraulic pumps. This gives Amada HDS press brakes high approach, bending and return speeds; unequalled ram positioning and repeatability of +/- 0.00004″. The HDS series press brakes all feature auto-crowning, 5 axis CNC backgauges and Amada AMNC Networking controls. This machine is an 88 ton x 8′ HDS 8025 NT press brake.
System Specifications
Tonnage Capacity: 88 US tons
Table Length: 102.4”
Maximum Bending Length: 100.4”
Distance between the Frames: 87.01”
Throat Depth: 16.34”
Stroke Length: 7.87
Open Height: 19.7”
Main Motor: 200 Volt
Power Required: 12 kVA
Approach speed of upper beam: 472 IPM
Bending speed of upper beam: 47 IPM
Return speed of upper beam: 474 IPM
Number of main cylinders: 2
Hydraulic pump motor output: 12.06 HP
Hydraulic unit tank capacity: 9.9 gal
Overall Length: 161”
Overall Width: 89.6”
Overall Height: 107.1”
Ground Height: 107.1”
Machine weight: 14,770 lbs.
Backgauge
Repeatability: L Axis 0.0008 inches
Movement Range
L Axis 27.55 inches
Y Axis 86.6 inches
Z Axis 9.8 inches
Feed Speed
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute
Minimum Command Unit
Ram 0.0001 inch
Backgauge 0.001 inch
CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
D1 & D2 – Ram depth : ( 0.098″ ram tilt)
L1 & L2 – Backgauge: (14 Backgauge Taper)
Z Vertical finger position: Y1 & Y2
– Horiz. finger movement, side to side CC – Ram crowning
Input Method: Touch Screen
Display
15″ Color Liquid Crystal Touch Screen
Program Storage
Limited only by network storage capacity
Bends per Program: 99
Die Library: 300
Punch Library: 300
