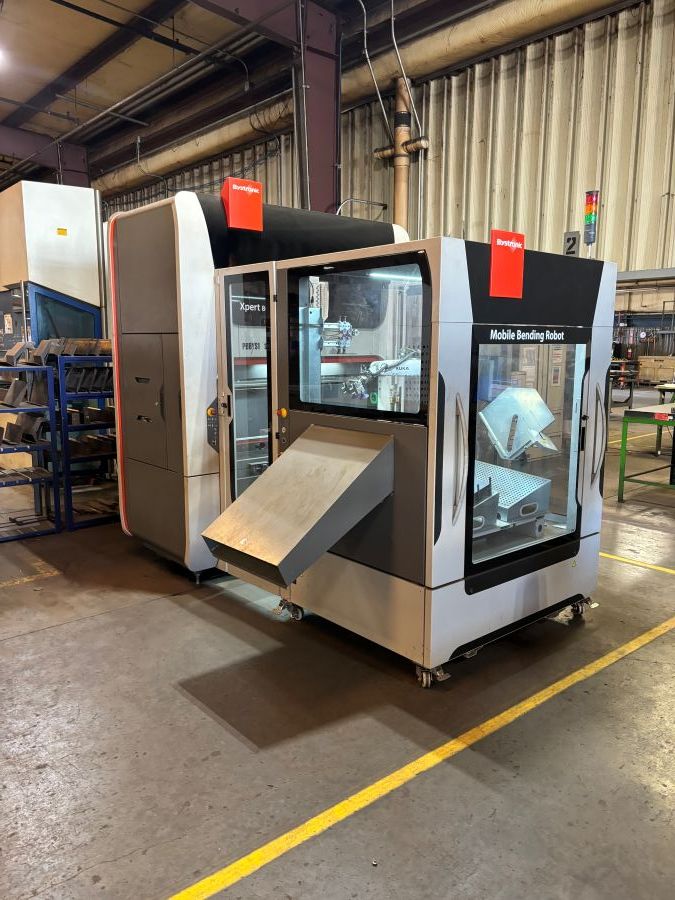

80 Ton x 5′ Bystronic Xpert 80/1530 Press Brake
With Mobile Bending Robot
Press Brake new in 2018 and Mobile Bending Robot new in 2020
Request Quote
Bystronic Xpert Press Brake
All Xpert’s feature high acceleration of the upper beam and backgauge, fast set up and low power consumption. Along with Bystronic’s user friendly control and ease of use through ergonomic design. Plus, the Xpert series features the unique active crowning feature with multiple cylinders, the only system like it in the industry. This press brake is equipped with the mobile bending robot automation.
Press Brake Specifications
Tonnage: 88 US Tons (80 Metric Tons)
Bending Length: 60.2” (1530 mm)
Standard Stroke: 7.9” (200 mm)
Open Height: 20.3” (515 mm)
Distance Between Side Frames: 61.8” (1570 mm)
Table Width: 2.4” (60 mm)
Max. Backgauge Range X-Axis: 19.7” (500 mm)
X-Axis Travel: 11.8” (300 mm)
X-Axis Speed: 3543 in/min (1500 mm/s)
R-Axis Travel: 3.9” (100 mm)
R-Axis Speed: 1181 in/min (500 mm/s)
Z-Axis Travel: 57.3” (1455 mm)
Z-Axis Speed: 4724 in/min (2000 mm/s)
Max. Y Approach Speed: 591 in /min (300 mm/s)
Max. Y Working Speed: 59 in/min (25 mm/s)
Y-Position Accuracy: 0.00016” (0.004 mm)
Oil Capacity: 53 Gal (200 L)
Electric Supply: 15 kW
Press Brake Dimensions
Length: 80” (2,030 mm)
Width: 67” (1,700 mm)
Height: 105” (2,659 mm)
Weight: 14330 lbs (6.5 Metric Ton)
Additional Information
Accepts Wila New Standard style tooling
Mobile Bending Robot (Xpert 80)
Max. Load: 22 lbs
Max. Part Size (approx.): 11.8” x 23.6”
Max. Part Weight (approx.) 15 lbs
Air Supply: 73-100 psi
Weight: 1.1 US Tons
Mobile Bending Robot Dimensions
Length: 59.8” (1520 mm)
Width: 47.3” (1200 mm)
Height: 82.3” (2090 mm)
Weight: 2200 lbs (1.0 Ton)
