80 Ton x 5′ Bystronic Xpert 80/1530 Press Brake

With Mobile Bending Robot

Press Brake new in 2018 and Mobile Bending Robot new in 2020

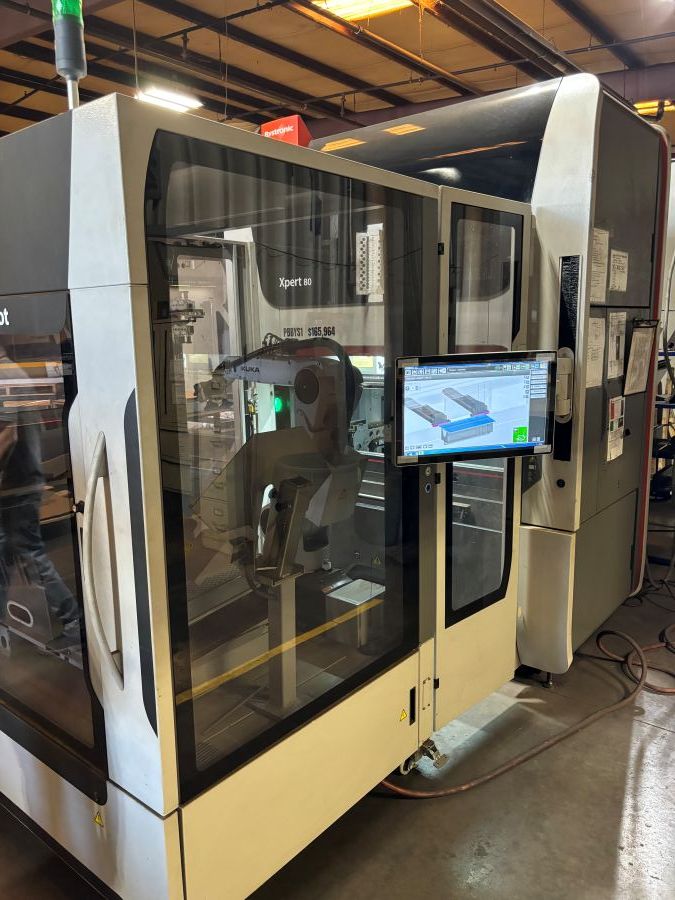

1156-Bystronic-Xpert-80-with-MBR-Control

Image 1 of 4

Bystronic Xpert Press Brake

All Xpert’s feature high acceleration of the upper beam and backgauge, fast set up and low power consumption. Along with Bystronic’s user friendly control and ease of use through ergonomic design. Plus, the Xpert series features the unique active crowning feature with multiple cylinders, the only system like it in the industry.  This press brake is equipped with the mobile bending robot automation.

Press Brake Specifications

Tonnage: 88 US Tons (80 Metric Tons)
Bending Length: 60.2” (1530 mm)
Standard Stroke: 7.9” (200 mm)
Open Height: 20.3” (515 mm)
Distance Between Side Frames: 61.8” (1570 mm)
Table Width: 2.4” (60 mm)
Max. Backgauge Range X-Axis: 19.7” (500 mm)
X-Axis Travel: 11.8” (300 mm)
X-Axis Speed: 3543 in/min (1500 mm/s)
R-Axis Travel: 3.9” (100 mm)
R-Axis Speed: 1181 in/min (500 mm/s)
Z-Axis Travel: 57.3” (1455 mm)
Z-Axis Speed: 4724 in/min (2000 mm/s)
Max. Y Approach Speed: 591 in /min (300 mm/s)
Max. Y Working Speed: 59 in/min (25 mm/s)
Y-Position Accuracy: 0.00016” (0.004 mm)
Oil Capacity: 53 Gal (200 L)
Electric Supply: 15 kW

Press Brake Dimensions

Length: 80” (2,030 mm)
Width: 67” (1,700 mm)
Height: 105” (2,659 mm)
Weight: 14330 lbs (6.5 Metric Ton)

Additional Information

Accepts Wila New Standard style tooling

Mobile Bending Robot (Xpert 80)

Max. Load: 22 lbs
Max. Part Size (approx.): 11.8” x 23.6”
Max. Part Weight (approx.) 15 lbs
Air Supply: 73-100 psi
Weight: 1.1 US Tons

Mobile Bending Robot Dimensions

Length: 59.8” (1520 mm)
Width: 47.3” (1200 mm)
Height: 82.3” (2090 mm)
Weight: 2200 lbs (1.0 Ton)
