60 Ton x 6′ Accurpress Model 7606 CNC Press Brake
Manufactured in 2000
Request Quote

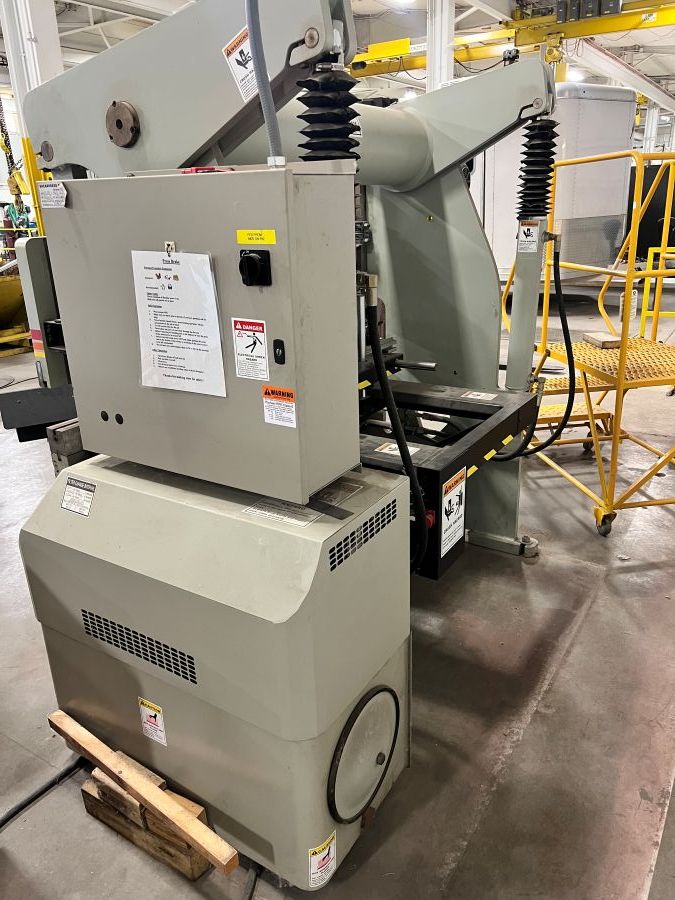

Accurpress Model 7606
The Accurpress model 7606 is a 60-ton by 6-foot long hydraulic rocker-arm style press brake. This series of Accurpress press brakes is noted for simplicity and reliability. An Accurpress ETS 200 control and backgauge equip this press brake.
Press Brake Specifications
Bending Capacity: 6′ x 10 gauge
Tonnage: 60 U.S. Tons
Length of Bed: 6′
Distance between Housings: 52″
Stroke, Adjustable: 8”
Open Height: 14″
Closed Height: 6″
Throat Depth: 8″
Speeds
Fast Approach: 130 inches per minute
Ram Speed, Work: 20 inches per minute
Ram Speed, Return: 260 inches per minute
Motor Horsepower: 10
Approximate Weight: 6,000 lbs.
Approximate Dimensions: 112” x 76” x 74”
Equipped with
Accurpress 2-Axis ETS 200 CNC Control (Ram and Backgauge)
