60-Ton Amada EG 6013 AR Fully Electric Robotic Bending Cell
Manufactured in 2017
Machine Number 1344
Request Quote
Amada EG 6013 AR
The Amada EG Series Press Brakes are an ultra-high precision, high-speed compact bending solution featuring advanced and precise Dual Servo Power drive system. The Amada EG 6013 AR combines the EG Series press brake, and automated bending robot, and auto gripper changer. Complicated parts can be stacked by the robot, placed in boxes or on a synchronized conveyor belt. With a compact footprint, valuable shop floor space is saved while offering increased productivity and profitability.
Brake Specifications
Capacity: 60 Tons (67 US Tons)
Table Length: 53.1”
Max. Bending Length: 53.1”
Distance Between the Uprights: 39.8”
Length of Stroke: 6.0”
Open Height (w/o PHL): 16.5”
Approach Speed: 8.7”/second
Bend Speed: 1”/second
Return Speed: 8.7”/second
Overall Length: 97.2”
Overall Width: 56.1”
Overall Height: 104.0”
Ground Height: 104.7”
Net Weight: 8200 lbs.
Robot
Bending Robot: Yaskawa Motoman MH6S-10
Axis Configuration: Robot: 6-axis
Max. Part Weight: 22 lbs (including gripper)
Carriage Axis: 10’
Maximum Reach P-Point: 39.25”
Weight: 265 lbs
Tool Clamp
Punch/Die: AMTS Type III-S
Tool Holder Length: 49.2”
Tool: Modular tool and STC spec. Height=6”
Tool Stocker
Tool Handling: Robot
Stocker Length: 31.5”
Number of Stockers: 12 Stocker (Total: Punch + Die)
Stocker Location: RH Side
Tool Weight Total: 635 lbs
Load/Unload
Load: 4 Load tables 12” x 12”
Unload: Drop in box or pass through conveyor
Equipped with
Dual Electric Servo Power Drive

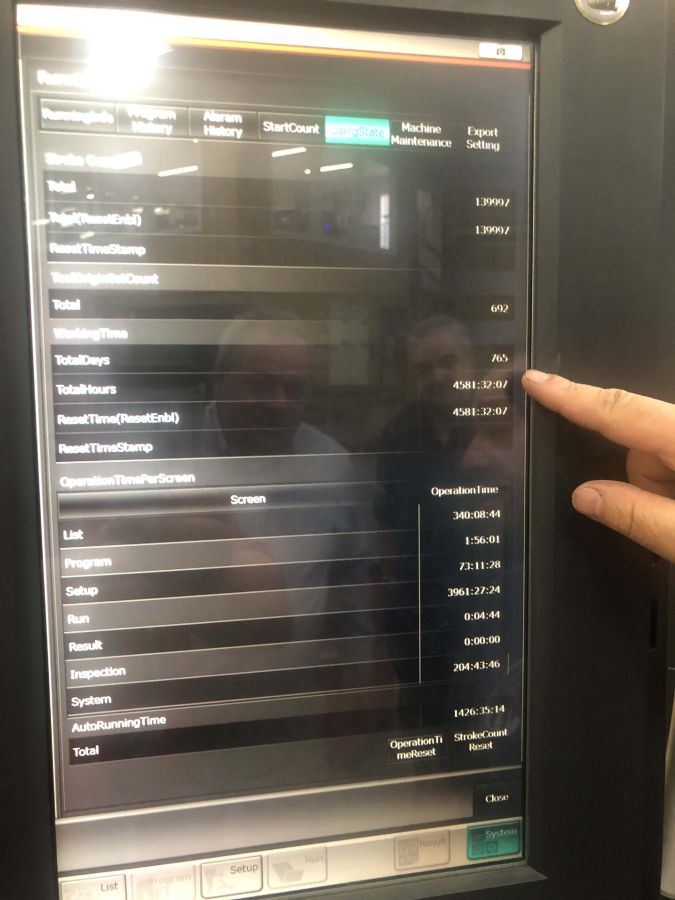

Amada 3i CNC Control with Vertical 18.5” Multi-Tool Display
Automatic Tool Changer
Yaskawa High Precision 7-Axis Bending Robot
Additional Tooling
