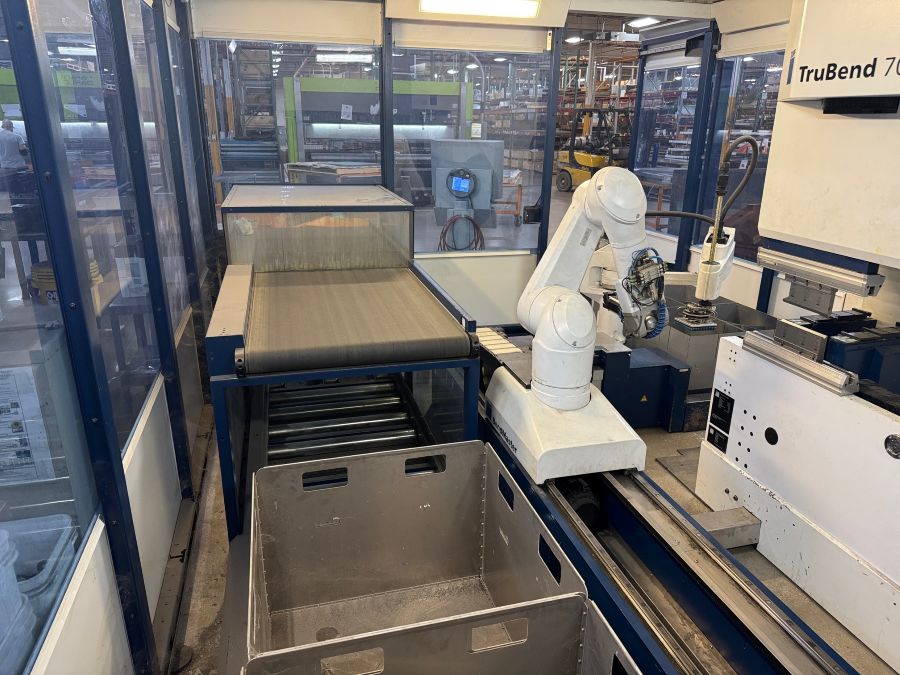

Trumpf TruBend 7036 Cell Edition Robotic Bending Cell
Manufactured in 2017
Machine Number 1286
Request Quote
Trumpf TruBend Cell
The Trumpf TruBend Cell 7000 is an automated, high-speed robotic cell designed for small parts. Based on a 36-ton (40 U.S. tons) TruBend 7036 press brake, it features a 6-axis backgauge, automatic tool changer (ToolMaster Bend), and a BendMaster robot for 24/7, high-speed, and precise angle bending.
Technical Specifications
Press Force: 40 U.S. tons
Bending Length: 40″
Width between Columns: 37″
Maximum table/beam Distance: 16.5″
Usable Installation Height: 12″
Throat: 6”
Operating Height: 45”
Speeds
Y Rapid: 520 Inches per Minute
Y Working: 59 Inches per Minute
Y Return Traverse Speed: 520 Inches per Minute
X Axis: 2362 Inches per Minute
R Axis: 780 Inches per Minute
Z Axis: 2362 Inches per Minute
Precision
Y axis Position Accuracy: 0.00008”
X axis Position Accuracy: 0.0008”
R axis Position Accuracy: 0.0008”
Working Range
Y Axis Stroke: 5”
Travel Path X Axis: 9”
Max. Gauge Area in X: 20”
Travel Path R Axis: 3”
Equipped With
ToolMaster Bend
Tool Gripper for Quicker Tool Change
Additional Finger Gripper
Additional Jaw Set
Gripper Changing Console Inclusive
Conveyor System
Thickness Controlled Bending
Remote Control Interface
