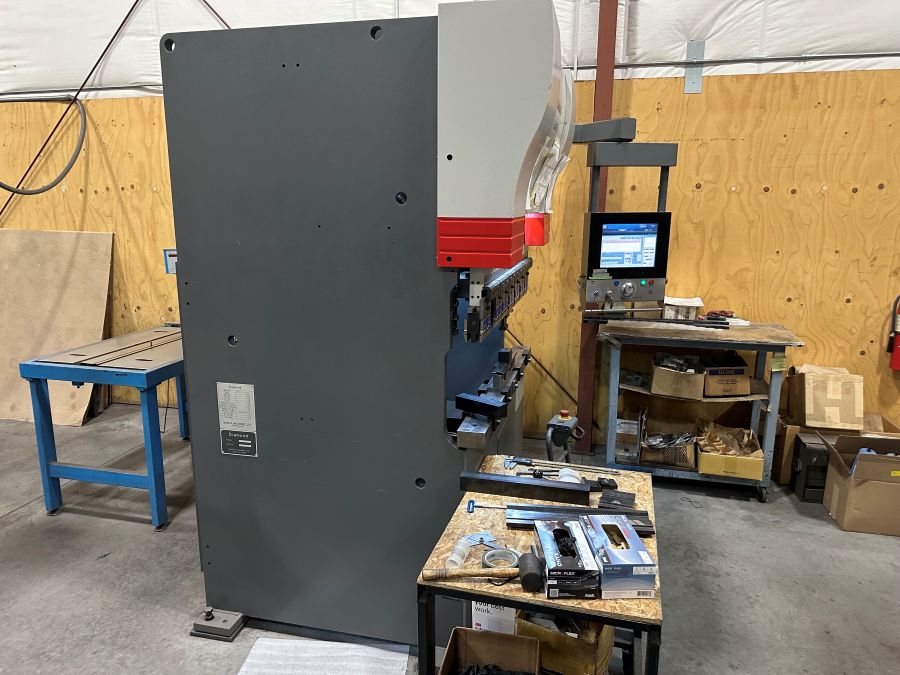

40-Ton Mitsubishi Diamond BB-4013 Fully Electric Servo Press Brake

Mitsubishi Diamond BB series press brakes are compact, cost-efficient press brakes that are quick, quiet, and produce high-quality work.

Featuring an AC servo motor and ball screw mechanism for high-speed productivity and repeatability (± 0.001mm)—brought to you by the originators of the world’s first electric press brake—the BB series ball screw press brake is the reliable, cost-efficient answer for accurate repeat bending work.

But the BB series is more than just a press brake workhorse. Equipped with on-board diagnostics capabilities and an intuitive CNC interface, these electric press brakes are as good for your business as they are for your operators. Quiet operation, environmentally clean, and easy to use, the BB series is the crown jewel of any bending department.

Machine Specifications

Press Force: 40 US Tons
Bending Length: 50”
Table Length: 55”
Distance Between Frames: 51”
Table Width: 4”
Open Height: 17”
Throat Depth: 3.9”
Ram Stroke: 5.9”
Ram Speed-Approach: 236 inches per minute
Ram Speed-Bending: 47 inches per minute
Ram Speed-Return: 236 inches per minute
Daylight w/o Punch Holders: 16.9”
Daylight with Punch Holders: 11”
Backgauge Travel: 19.7”
Backgauge Max Gauge Stop: 25.6”
Power Requirement: 15 kVA
Weight: 7,700 lbs

Equipped With

4-Axis Mitsubishi control and backgauge (XL,XR,Y,Z)
European Style Tool Holders
