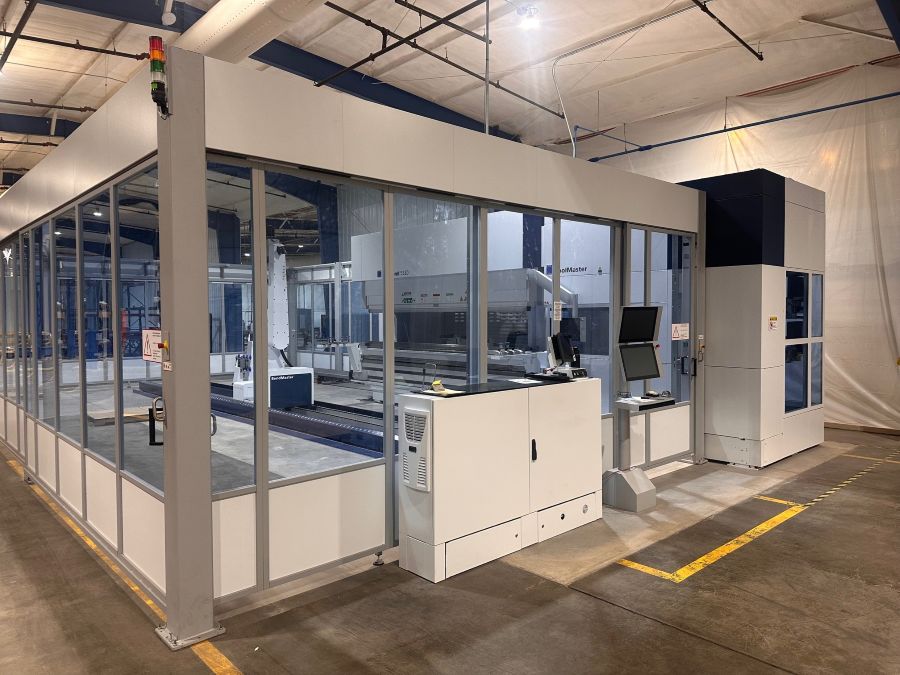

Trumpf TruBend Cell 5000
With 353 Ton Trumpf TruBend 5320 Press Brake, BendMaster 150 Robot, and ToolMaster
Manufactured in 2023
Machine Number 1240
Request Quote
Trumpf TruBend Cell 5000
Easy programming, fast automated bending: The TruBend Cell 5000 is the perfect solution for all those who value productive and flexible automation, for the widest possible range of parts. The quality remains consistently high. With the newest series of the bending machine TruBend 5000, the bending cell is state of the art, for example in the areas of programming and angle measurement. Select the bending machine and BendMaster according to your individual range of components. You also have maximum freedom in the design of the material flow using conveyor belts and pallet conveyors.
Technical Data for TruBend 5320
Model: TruBend 5320 Hydraulic Press Brake
Press Force: 353 Tons
Bending Length: 4420 mm (174”)
Width between Columns: 3680 mm (145”)
Usable Open Height: 615 mm (24”)
Throat Depth: 420 mm (16.5”)
Speeds
Y Rapid: 520 ipm
X Axis: 2362 ipm
R Axis: 780 ipm
Z Axis: 2362 ipm
Precision
Y Axis Position Accuracy: 0.0002”
X Axis Position Accuracy: 0.002”
R Axis Position Accuracy: 0.003”
Techinical Data for BendMaster 150
Model: BendMaster 150
Maximum Part Size: 3000 mm x 1500 mm (118” x 59”)
Profiles: Up to 4000 mm (157”)
Maximum Part Weight: 150 kg (331 lb)
Maximum Carrying Capacity: 150 kg (331 lb)
Minimum Sheet Thickness: 0.7 mm
Part Length: 8 m – 16 m (26.24’ – 52.49’)
Maximum Sheet Stack: 700 mm (27.56”)
Maximum Stack Height for Finished Parts: 1200 mm (47.24”)
Dimensions
BendMaster Weight: 2344 kg (5168 lb)
Weight of Basic Machine: 23400 kg (51588 lb)
TruBend Machine: 5180 mm x 2055 mm x 3200 mm (204” x 81” x 126”)
