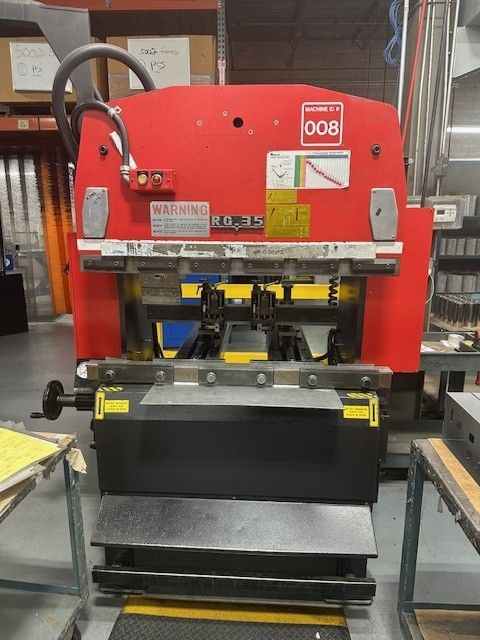

35 Ton x 49.3″ Amada RG-35 Press Brake
Equipped with NC9EX II Control and Backgauge
Manufactured in 1993
Machine Number 1228
Request Quote
Amada “Up-Acting” Press Brake
The Amada RG -35 is a 35 ton x 4′ hydraulic “Up-Acting” press brake. All RG series press brakes are bending mechanisms built into a simple system. The primary concern of this original system is precision and user friendly operation. The Amada RG press brake series provides excellent performance in general sheet metal processing bending small and large parts. The numbers of Amada press brakes units installed worldwide proves its high reliability. This Amada RG-35 is equipped with the popular NC9EXII control and backgauge.
Specifications
Capacity: 35 Tons (38.5 US)
Table Length: 47.3”
Max. Bending Length: 49.3”
Distance between Uprights: 40.2”
Throat Depth: 7.88”
Length of Stroke: 3.94”
Open Height: 14.58”
Power Required: 4 kVA
Hydraulic Oil Reservoir: 6.86 gallons
Overall Length: 53.4”
Overall Width: 40.6”
Overall Height: 77.2”
Ground Height: 77.2”
Net Weight: 3500 lbs.
NC9EXII Specifications
Number of Drive Axes: 3
Input Method: Tenkey numeric pad
Data Display: LED
Memory Capacity: 99 steps
Equipped With
Complete set of Tool Holders
