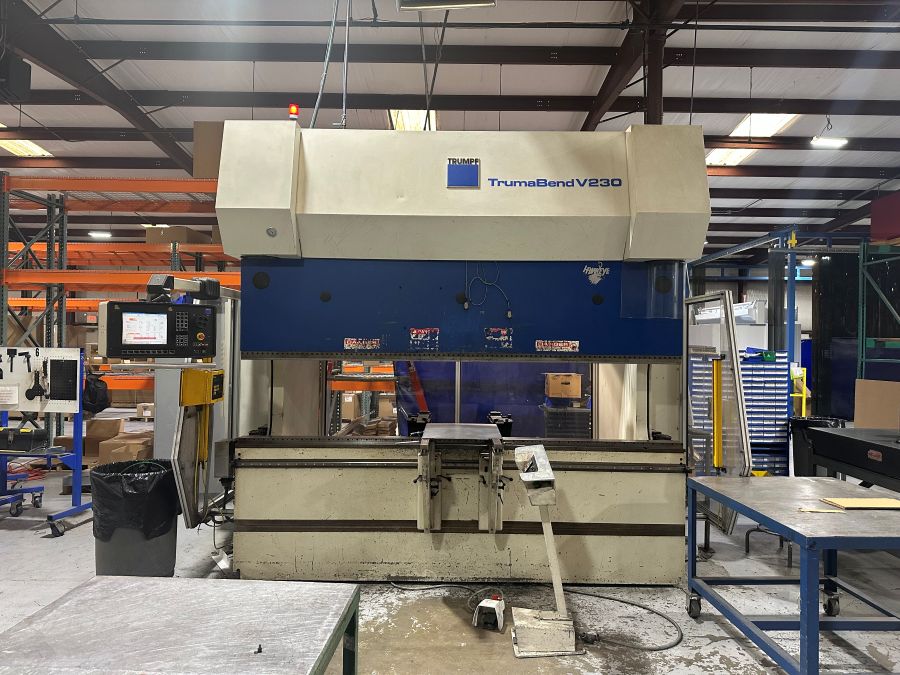

257 Ton x 10′ Trumpf TrumaBend V230 CNC Press Brake
Manufactured in 2001
Machine Number 1298
Request Quote
Trumabend V-Series Press Brake
The Trumpf Trumabend V-series press brakes were Trumpf’s Top of the line press brakes and the predecessor to the popular 5000 series press brakes. All V-Series machines are capable of performing a wide range of bending applications with the highest degree of precision and productivity.
Technical Specifications
Tonnage: 257 Ton
Overall Bending Length: 10′
Distance Between Housings: 8’10”
Throat Depth: 16″
Stroke: 14.37″
Open Height: 21″
Inclination of Beam: ± 0.4”
Width of Bed: 8”
Operating Height: 41”
Max. Distance in X: 33.5”
Travel in X Axis: 23.6”
Max. Speed of X Axis: 1200 ipm
Max. Speed of Z Axis: 1900 ipm
Y Rapid Speed: 472 ipm
Y Return Speed: 320 ipm
Max Operating Press: 4423 psi
Brake Time: 59 ms
Safety Distance: 3.7”
Voltage: 3×460 V
Full Load Current: 69 A
Frequency: 60 Hz
Electrical Connection: 31.7 kVA
Weight: 39,028 lbs
Equipped With
Delem CNC 3-D color control w/ Backgauge
Optional I-Axis
CNC Crowning
Hydraulic Tool Clamping
