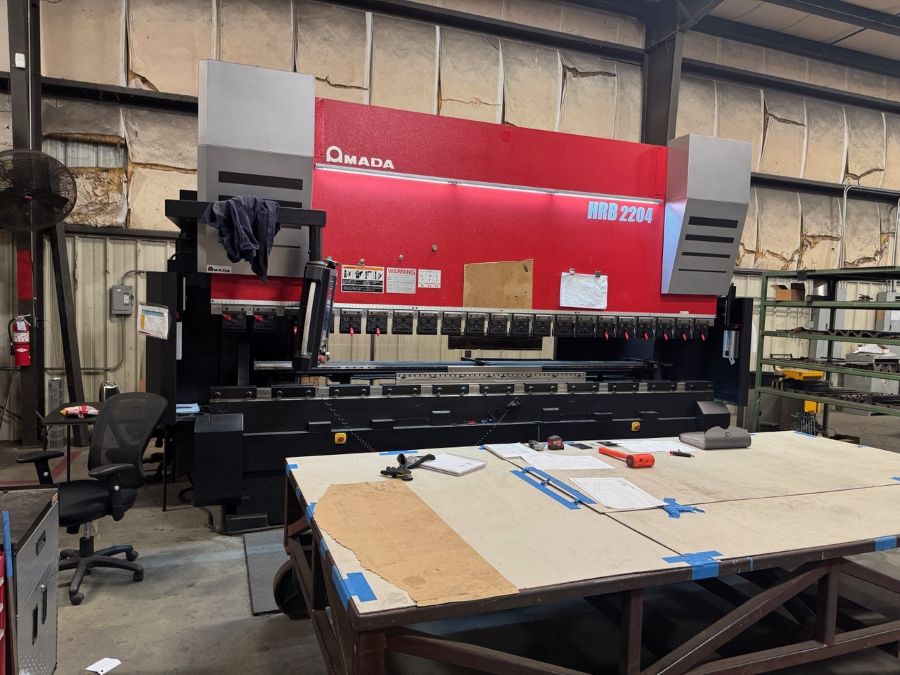

243 Ton x 169.3″ Amada HRB 2204M10 Press Brake
equipped with AMNC 3i Control
Manufactured in 2021
Machine Number 1352
Request Quote
Amada HRB 2204
The HRB Press Brake Series leverages industry-leading bending technology and a variety of production-enhancing features that can be customized to resolve your specific challenges. In addition to providing precise bending results, the new HRB Series is engineered to ensure the utmost in versatility and ease-of- use. This machine is the 243 Ton x 169.3″ press brake and is equipped with the Amada AMNC 3i control.
System Specifications
Maximum Tonnage: 243 U.S. Tons
Working Length: 169.3”
Open Height: 20.47”
Stroke Length: 9.84”
Throat Depth: 17.72”
Distance between Frames: 148”
Hydraulic Oil Reservoir: 22.2 gal
Power Consumption: 20 kVA
Approach Speed: 4.72 inch/sec
Bending Speed: 0.47” inch/sec
Return Speed: 4.72 inch/sec
Control and Backgauge Specifications
Control: CNC (AMNC 3i)
Backgauge Axes: 6
RAM: D1&D2
Backgauge: L1&L2
Backgauge Horizontal: Y1&Y2
Backgauge Vertical: Z1&Z2
Ram Repeatability: .00004”
Backgauge Speed (L-Axis): 1,181 inch/min
Backgauge Speed (Y-Axis): 2,362 inch/min
Backgauge Speed (Z-Axis): 394 inch/min
System Dimensions
Total Length: 197.4”
Total Width: 82.7”
Total Height: 120.7”
Ground Height: 101.5”
Total Weight: 35,274 lbs.
