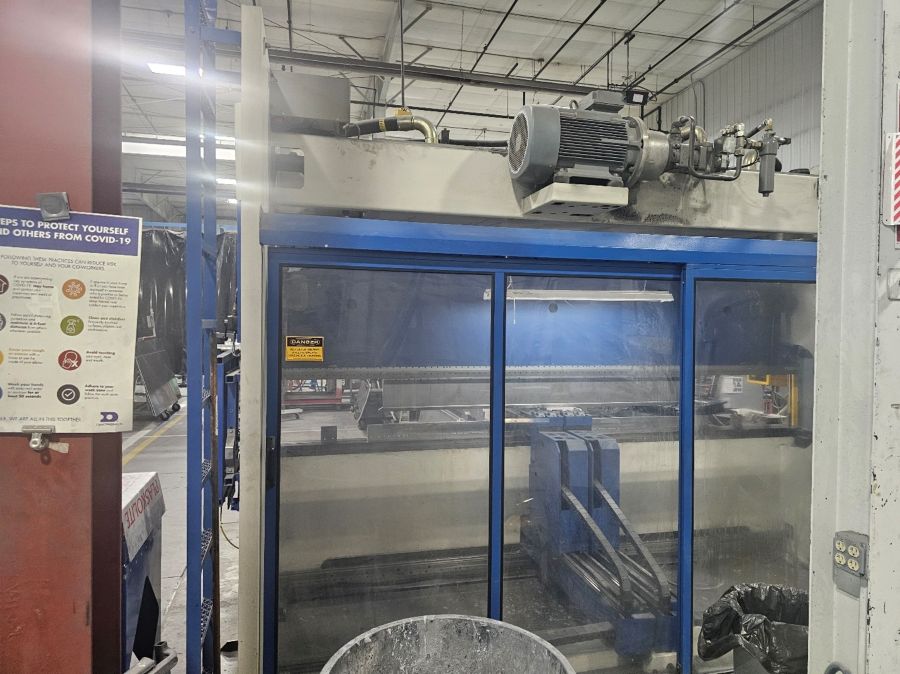

220 Ton x 160″ Trumpf TrumaBend V200 CNC Press Brake
Manufactured in 2005
Machine Number 1215
Request Quote
TrumaBend V-Series Press Brake
The Trumpf TrumaBend V-series press brakes were Trumpf’s top of the line press brakes and the predecessor to the popular 5000 series press brakes. All V-Series machines are capable of performing a wide range of bending applications with the highest degree of precision and productivity. TrumaBend press brakes are perfect wherever parts with small radii and short flanges need to be produced accurately through coining or air bending.
Technical Specifications
Tonnage: 220 Ton
Stroke: 14”
Max. Bed-Press Beam Distance: 25”
Open Height: 21”
Inclination of Beam: ± 0.4”
Bending Length: 160”
Distance Between Side Frames: 145”
Throat: 16”
Width of Bed: 8”
Operating Height: 41”
Travel in X Axis: 23.6”
Max. Speed of X Axis: 1200 IPM
Travel R Axis: 9.8”
Max. Speed of R Axis: 710 IPM
Max. Speed of Z Axis: 1900 IPM
Drive Motor: 30 HP
Oil Capacity: 93 gal.
Machine Dimensions: 182” (L) x 87” (D) x 114” (H)
Machine Weight: 39,600 lbs.
Equipped with
Trumpf CNC Control
CNC Crowning
Hydraulic Tool Clamping
