187 Ton x 167″ Amada HFE 170-4S/7 “Down-Acting” 7-Axis CNC Press Brake

Manufactured in 2003

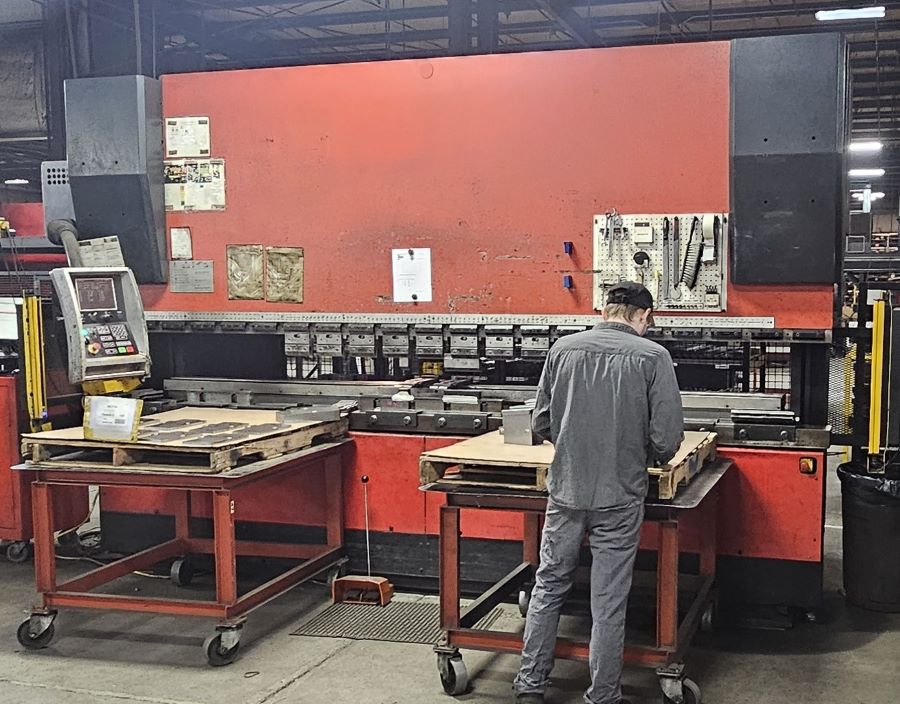

862-Amada-HFE-170-4S-Front-and-control

Image 2 of 10

Request Quote

Amada HFE Hydraulic Down-Acting Press Brake

The Amada HFE series was Amada’s popular line of hydraulic press brakes.  They are equipped with the Operatuer 7-Axis CNC control and backgauge , plus a composite bed for consistent bending .

Specifications

Capacity: 187 U.S. tons
Bed Length: 168 inches
Maximum Stroke Length: 7.8 inches
Open Height: 18.5 inches
Throat Depth: 16.5 inches
Distance Between Side Frames: 148 inches
Ram Repeatability: +/- 0.0004 inches
Approach Speed: 7.87 inches per second
Bending Speed: 0.04 to 0.787 inches per second, programmable
Return Speed: 0.04 to 7.87 inches per second, programmable
Overall Machine Length: 193.7 inches
Machine Width: 68.5 inches (105″ including control and pendant)
Machine Height: 119.25 inches
Hydraulic Oil Capacity: 92 gallons
Machine Weight: 37,700 pounds
Machine Power: 35.5 KW
Foundation: 6 inch concrete slab

Backgauge:

Model: Amada Type B
Repeatability: X Axis +/- 0.0004 inches
Movement Range
X Axis 27.5/37.5 inches
R Axis   9.84 inches
Z Axis 137 inches
Feed Speed
X Axis 19.5 inches per second
R Axis    6.2 inches per second
Z Axis 39.3 inches per second
Minimum Command Unit: 0.0001 inch

CNC Controller

Model: Amada OPERATEUR
Axes of Control: 7 standard
Y1Y2 Ram depth X1X2 Backgauge Z1Z2 Horizontal finger position of two stoppers, R Vertical finger position of two stoppers
Input Method: Keyboard, 3.5″ diskette and RS232
Display12″ Color VGA
Program Storage: 60 in active memory plus 30 on diskette
Bends per Program: 25
Die Library: 70 dies
Punch Library: 30 punches
