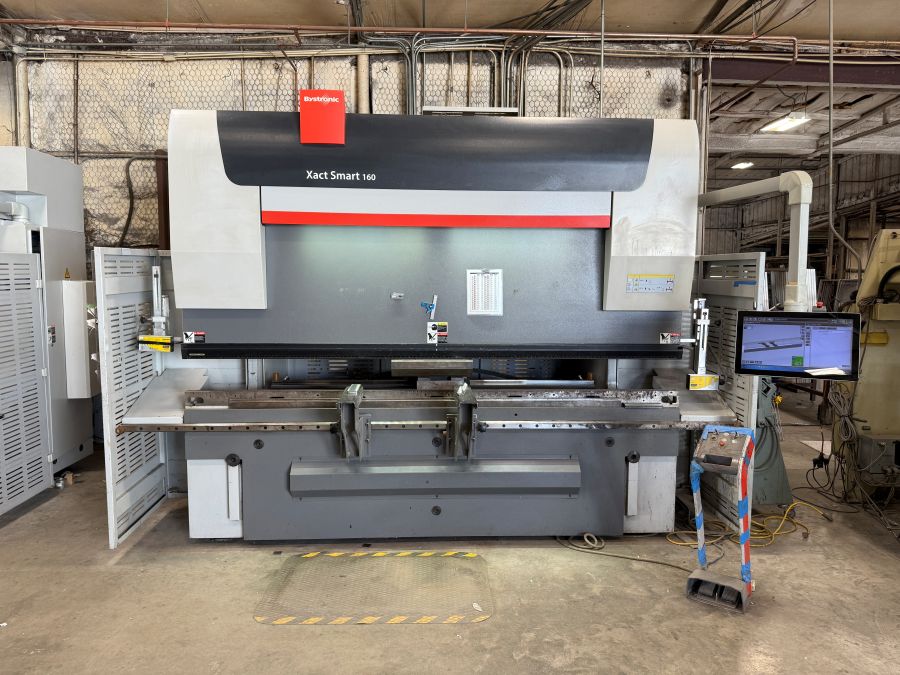

176 Ton x 10′ Bystronic Xact Smart Model 160/3100 Press Brake
Manufactured in 2016
Machine Number 1274
Request Quote
Bystronic Xact Series
The Bystronic Xact Smart press brake series is for customer’s looking for Bystronic quality and bending knowledge in a more affordable machine. This model has a max press force of 176 Tons and a working length of 122″.
General Information
Model: Xact Smart 160/3100
Manufactured: 2016
Specification
Working Length: 3100 mm (122”)
Max. Press Force: 1600 kN (176 US Tons)
Standard Stroke: 7.9”
Max. Stroke: 300 mm (11.81”)
Open Height: 18.9”
Distance between Side Frames: 96.5”
Throat: 15.8”
Rapid Approach: 425 in/min
Working Speed: 1-13 mm/s
Return Speed: 425 in/min
Backgauge
X-axis Travel: 23.6”
X-axis Speed: 1417.3 in/min
X-axis Position Accuracy: 0.002”
R-axis Travel: 5.9”
R-axis Speed: 472.4 in/min
R-axis Position Accuracy: 0.002”
Z-axis Travel: 72”
Z-axis Speed: 2362.2 in/min
Max. Y-Approach Speed: 330.7 in/min
Max Y-Working Speed: 23.6 in/min
Y-Position Accuracy: 0.0004”
Electric values
Power of Main Motor: 18.5 kW
Total Connected Load: 30 kW
Operating Voltage: 3PH 480V
Frequency: 60Hz
Control voltage V DC: 24
Nominal Current Fuse A: 63
Dimensions
Length: 154”
Width: 74”
Height: 107”
Weight: 25,353 lbs
