175 Ton x 12′ Wysong Hydraulic Press Brake
Model: MTH175-144
Manufactured in 2000
Request Quote
Wysong Hydraulic Press Brake
Wysong press brakes are engineered to stand up to the most demanding production environments. The model MTH175-144 is a hydraulic press brake with a 175 ton capacity and a 144″ overall bending length.
Technical Specifications
Tonnage: 175 Tons
Overall Bending Length: 144”
Distance Between Housing: 126”
Open Height: 17”
Shut Height: 9”
Stroke Length: 8”
Throat Depth: 8”
Maximum Ram Tilt: ±0.25”
Approach Speed: 300 in/min
Press Speed: 22 in/min
Overall Width: 60”
Overall Height: 106.5”
Bed Height: 34”
Bed Top Width: 8”
Motor Horsepower: 15
KVA Requirement: 21
Oil Reservoir Capacity: 47 gal
Equipped With
Foot Pedal

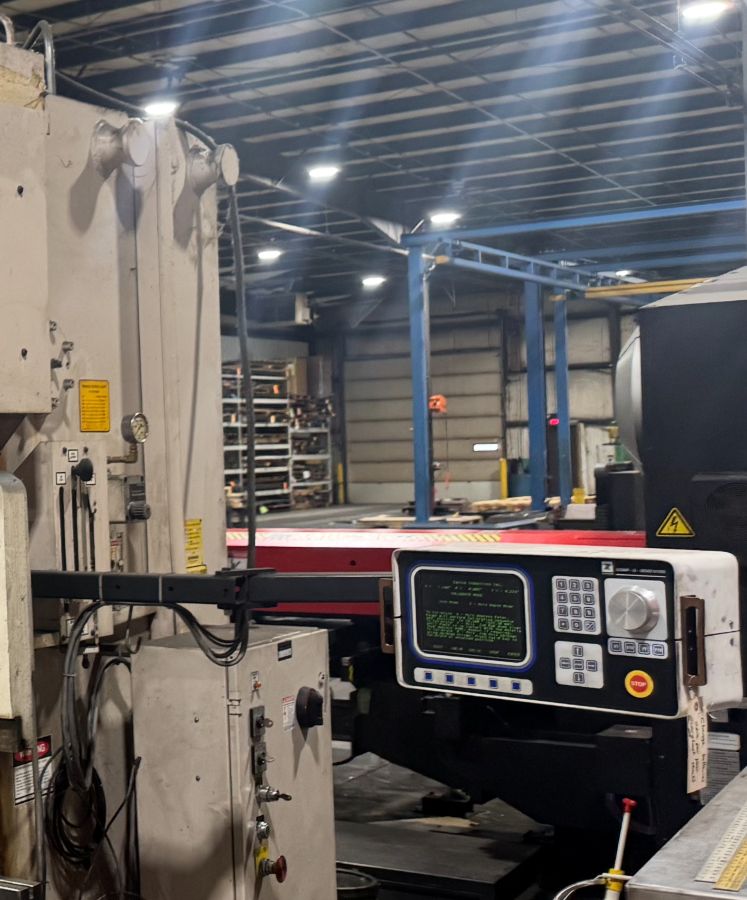

Control
Backgauge
