175 Ton x 12′ Wysong Hydraulic Press Brake

Model: MTH175-144

Manufactured in 2000

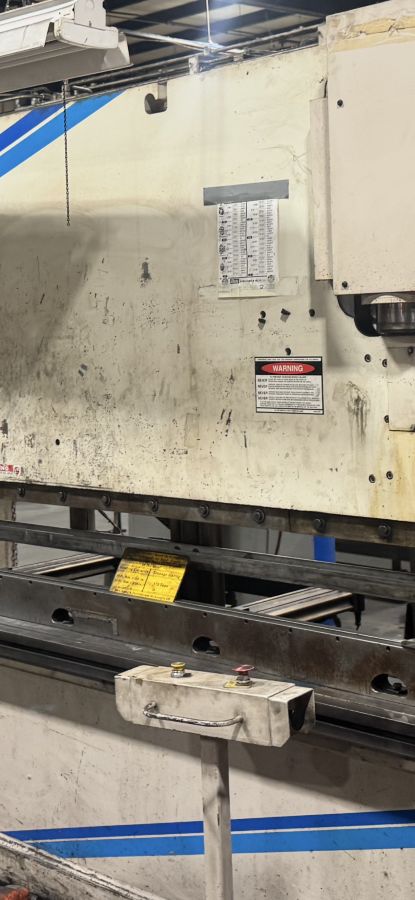

1172-175-Ton-Wysong-MTH175-144-Press-Brake-Control

Image 5 of 6

Wysong Hydraulic Press Brake

Wysong press brakes are engineered to stand up to the most demanding production environments.  The model MTH175-144 is a hydraulic press brake with a 175 ton capacity and a 144″ overall bending length.

Technical Specifications

Tonnage: 175 Tons
Overall Bending Length: 144”
Distance Between Housing: 126”
Open Height: 17”
Shut Height: 9”
Stroke Length: 8”
Throat Depth: 8”
Maximum Ram Tilt: ±0.25”
Approach Speed: 300 in/min
Press Speed: 22 in/min
Overall Width: 60”
Overall Height: 106.5”
Bed Height: 34”
Bed Top Width: 8”
Motor Horsepower: 15
KVA Requirement: 21
Oil Reservoir Capacity: 47 gal

Equipped With

Foot Pedal
Control
Backgauge
