150-Ton LVD ToolCell 135/30
Manufactured in 2023
“Power On” Hours ~ 6337 and “Pump Running Hours” ~ 5520 as of February 2025
Request Quote

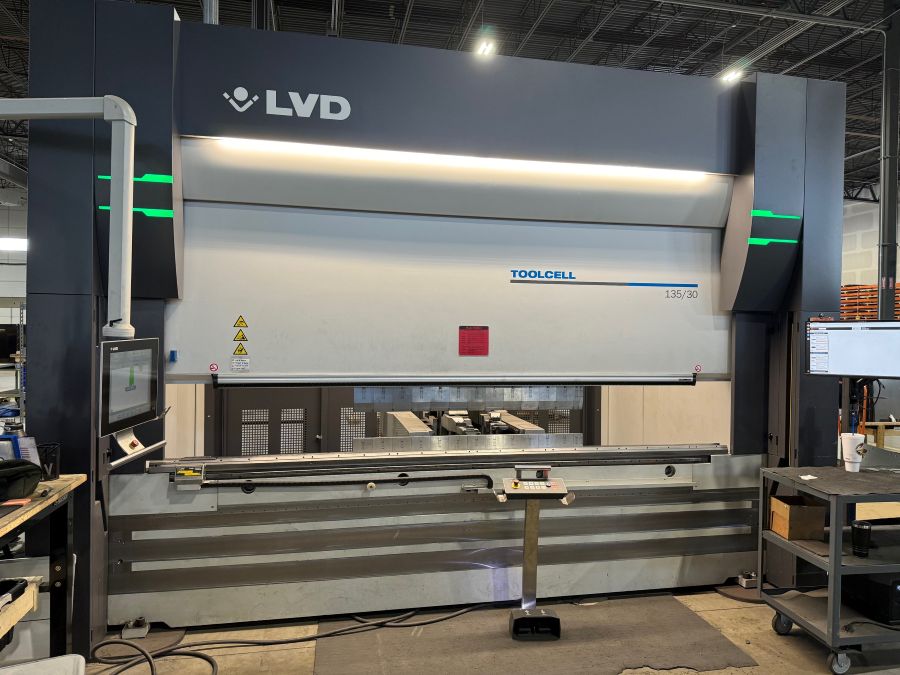

LVD ToolCell
The LVD ToolCell is the ultimate bending solution for small to medium batches, a high product mix and complex parts. All tools are held within the machine and automatically changed as the job requires – minimizing tool changeover time and increasing throughput.
Specifications
Pressing Force (US tons): 150 Tons
Pressure: 290 bar
Working Length: 120”
Distance between Uprights: 157”
Stroke: 11.8-15.7”
Distance table/ram: 19.6-23.6”
Table Width: 4.7”
Maximum Load Table: 78” ton/ft
Working Height: 38”
Approach speed (in/min): 425
Working speed (in/min): 51
Return speed (in/min): 472
Motor: 15 hp
Oil: 66 gallons
Weight: 40,786 lbs.
Equipped with
Auto Tool Changing
Auto Bend Angle Correction
Tooling
