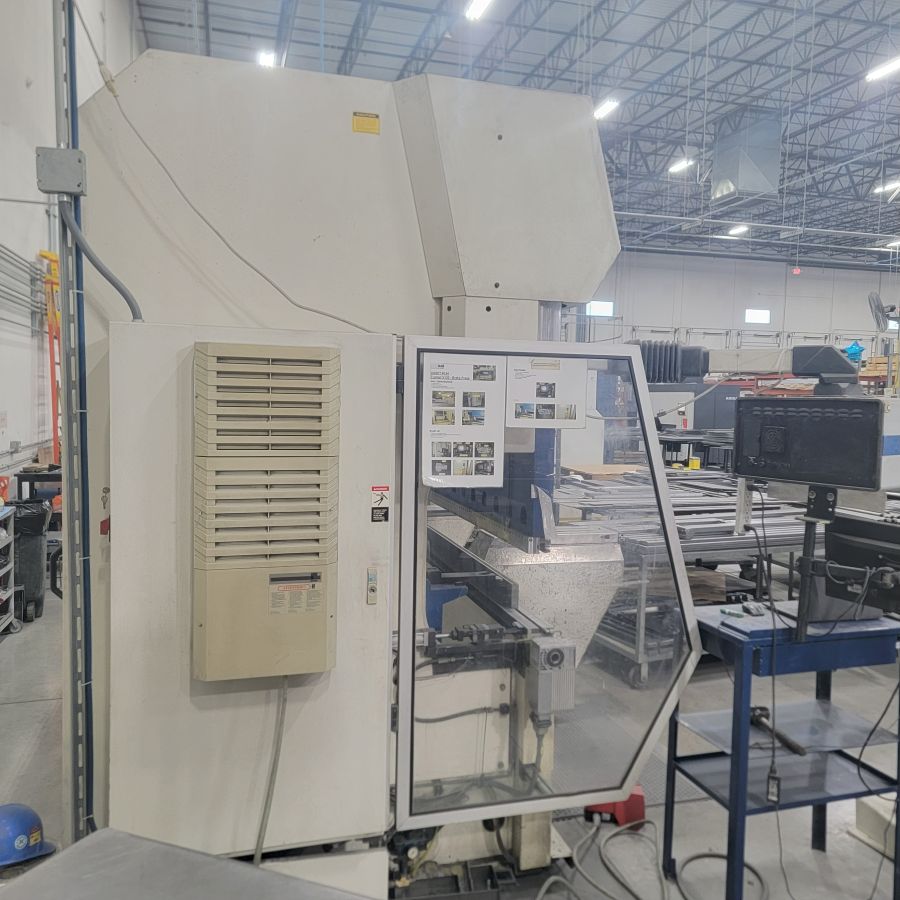

144 Ton Trumpf TrumaBend V-130 Press Brake
Manufactured in 1999
Machine Number 1246
Request Quote
Trumabend V-Series Press Brake
The Trumpf Trumabend V-series press brakes were Trumpf’s Top of the line press brakes and the predecessor to the popular 5000 series press brakes. All V-Series machines are capable of performing a wide range of bending applications with the highest degree of precision and productivity. This Trumpf TrumaBend V-130 has a 144 Ton capacity, 10′ bending length, and a 6-Axis backgauge.
Technical Specifications
Tonnage: 144
Maximum Bending Length: 120”
Distance Between Housings: 106”
Stroke: 14.37”
Throat Depth: 16″
X-axis Travel: 23.6″
R-axis Travel: 9.8″
Oil Capacity: 66 gal.
Speeds
Max. Speed of X-axis: 1200 IPM
Max. Speed of R-axis: 710 IPM
Max. Speed of Z-axis: 1900 IPM
Y-axis Rapid Speed: 472 IPM
Y-axis Operating Speed: 2-24 IPM
Y-axis Return Speed: 320 IPM
Dimensions
Approximate Dimensions: 144″ (L) x 87″ (D) x 114″ (H)
Approximate Weight: 24,800 lbs
Equipped with
Delem DA69 Color CNC Control
6-Axis Backgauge
Upper and Lower Hydraulic Clamping
CNC Crowning
Automatic Sheet Support
