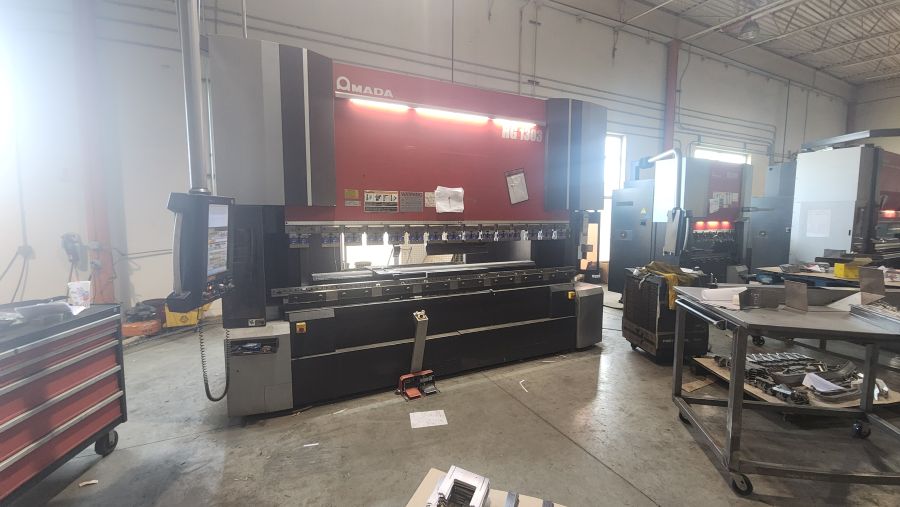

143 Ton x 122.4″ Amada HG-1303 Press Brake
Equipped with Amada 3i CNC control and 6-Axis backgauge
Manufactured in 2015
Machine Number 1355
Request Quote
Amada HG Press Brakes
The Amada HG Series Press Brakes are an ultra-high precision, high-speed compact bending solution featuring an advanced Dual Servo Power drive system providing the ultimate in bending control and accuracy. This particular machine has a 143 Ton capacity, with a maximum bending length of 122.4″ and stroke length of 9.8″. It is equipped with an Amada AMNC 3i control, 6-Axis backgauge and CNC crowning.
Machine Specifications
Tonnage: 143 Ton
Maximum Bend Length: 122.4”
Distance between Uprights: 106.3”
Throat Depth: 17.7”
Stroke Length: 9.8”
Open Height (no holders): 20.5”
Approach Speed: 8.7” per second
Bending Speed: 0.79” per second
Return Speed: 9.8” per second
Number of Cylinders: 2
Hydraulic Oil Reservoir: 18.3 gal
Nominal Supply Current: 60A
Provided Power: 21 kVA

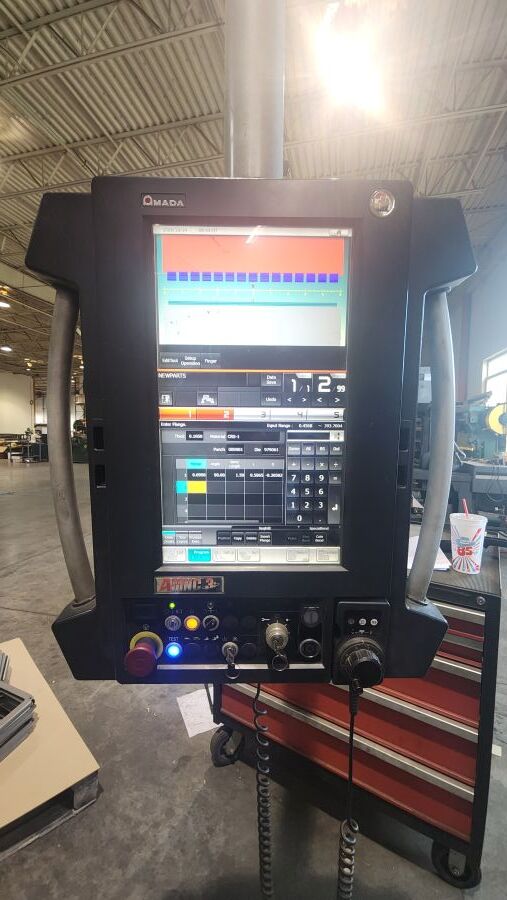

Control and Backgauge
Control Type: AMNC 3i
Program Capacity: Unlimited via net
Possible Axis under CNC Control: 11
Ram: D1 & D2
Backguage: L1 & L2
Backgauge Horizontal: Y1 & Y2
Backgauge Vertical: Z1 & Z2
Ram Repeatability: +/- 0.00004”
Backgauge Speed (L-axis): 1,181 IPM
Backguage Speed (Y-axis): 3,543 IPM
Backguage Speed (Z-axis): 787 IPM
Backgauge Range: 27.5”
Machine Dimensions
Machine length: 214.4”
Machine width: 104.9”
Machine height: 119.3”
Machine weight: 25,353 lbs
