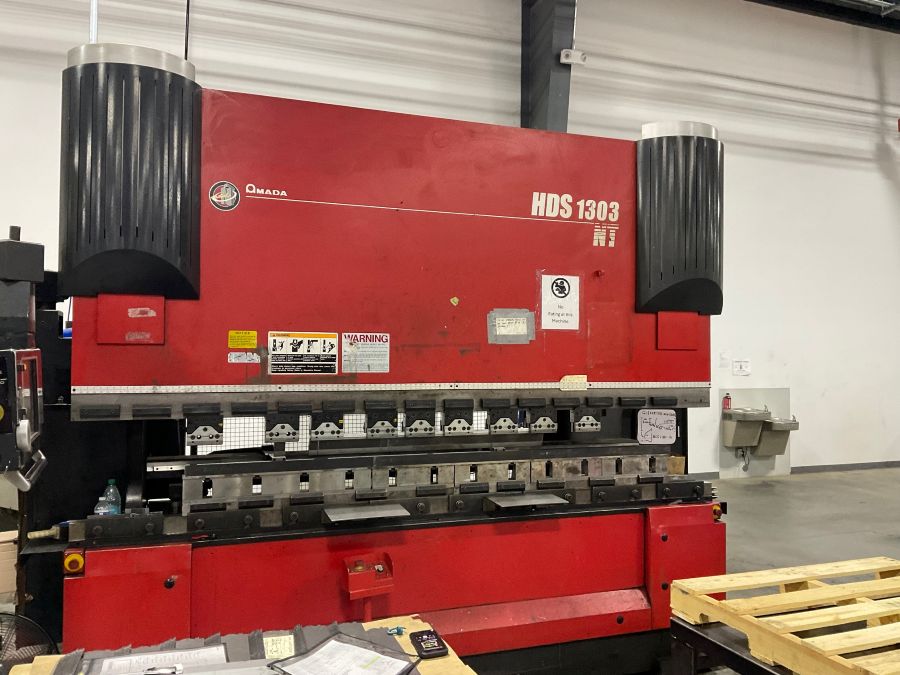

143 Ton Amada HDS-1303NT Press Brake
Manufactured in 2014
Machine Number 1336
Request Quote
HDS NT Series Hybrid Press Brake
The Amada HDS NT series are Servo Hydraulic Hybrid press brakes for ultra high precision positioning and bending. This system uses independent AC-servo motors to drive high efficiency, bi-directional hydraulic pumps. This gives Amada HDS press brakes high approach, bending and return speeds; unequalled ram positioning and repeatability of +/- 0.00004″. The HDS series press brakes all feature auto-crowning, 5 axis CNC backgauges and Amada AMNC Networking controls. This machine is an 143 ton x 10′ HDS 1303 NT press brake.
System Specifications
Capacity: 143 US tons
Maximum Bending Length: 126.8”
Distance Between Uprights: 106.3”
Throat Depth: 17.7”
Stroke Length: 7.9”
Open Height: 19.7”
Approach speed of upper beam: 7.87 ips
Bending speed of upper beam: 0.79 ips
Return speed of upper beam: 7.87 ips
Number of main cylinders: 2
Hydraulic pump motor output: 5.2 x 2.7 HP
Hydraulic Oil Reservoir: 17.8 gal
Backgauge
Repeatability: L Axis 0.0008 inches
Movement Range
L Axis 27.55 inches
Y Axis 86.6 inches
Z Axis 9.8 inches
Feed Speed
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute
Machine Dimensions
Overall Length: 185.6”
Overall Width: 89.6”
Overall Height: 118.5”
Ground Height: 118.5”
Machine Weight: 24251 lb.
CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
Input Method: Touch Screen
15″ Color Liquid Crystal Touch Screen
Program Storage
Limited only by network storage capacity
Bends per Program: 99
Die Library: 300
Punch Library: 300
