110 Ton x 122″ Amada RG-100 Press Brake

With NC9EX 3-Axis Backgauge

Manufactured in 1984

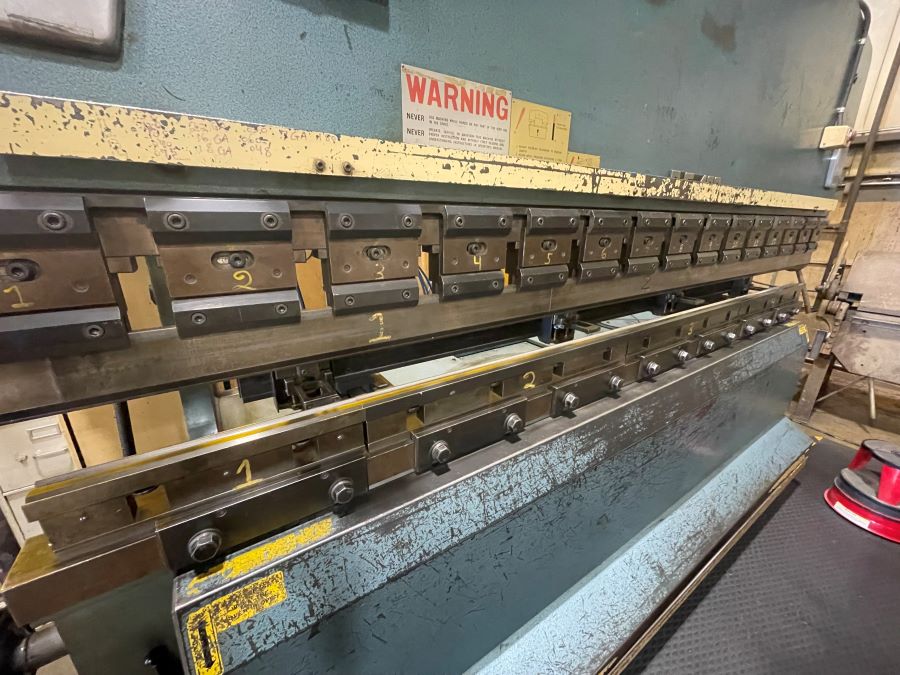

769-Amada-RG100-EX-Front

Image 2 of 5

Request Quote

Amada RG-100 Press Brake

The Amada RG series press brakes are bending mechanisms built into a simple system. The primary concern of this original system is precision and operability. The Amada RG press brake series provides excellent performance in general sheet metal processing bending small and large parts. The numbers of Amada press brakes units installed worldwide proves its high reliability. The RG-100 is a 10′ x 110 ton bending capacity “up-acting” press brake. This machine is equipped with the popular and user friendly NC9EXII control and backgauge, which is capable of both “angle mode” and “depth mode” programming for fast set ups and versatility.

Specifications:

Maximum Tonnage: 110 Tons
Maximum Bending Length: 122″
Maximum Stroke Length: 3.9″
Clearance between beams (open height): 14.57″
Throat Depth: 15.75″
Distance between side frames: 100.39″

Ram Speed:

Approach: 2.04″/sec
Bending: .39″/sec
Return: 2.32″/sec
Hydraulic Tank: 17.1 Gal
Machine Weight: 14,110 lbs.
Machine Dimensions: 122″ x 61.22″ x 90.55″
Motor HP: 10
