110 Ton x 122.4″ Amada HRB-1003 M05 Press Brake
Equipped with AMNC 3i Control
Manufactured in 2025
Machine Number 1295
Request Quote
Amada HRB Series
The HRB Press Brake Series leverages industry-leading bending technology and a variety of production-enhancing features that can be customized to resolve your specific challenges. In addition to providing precise bending results, the new HRB Series is engineered to ensure the utmost in versatility and ease-of- use.
System Specifications
Tonnage: 110 U.S. Tons
Maximum Bend Length: 122.4”
Distance Between Frames: 106.3”
Stroke Length: 9.84”
Open Height: 20.47”
Throat Depth: 17.72”
Table Height: 37.8”
Approach Speed: 5.91 inch/sec
Bending Speed: 0.59 inch/sec
Return Speed: 5.91 inch/sec
Hydraulic Fluid Capacity: 12.7 gallons
Control: CNC AMNC 3i with LITE mode (18.5″ multi-touch LCD)

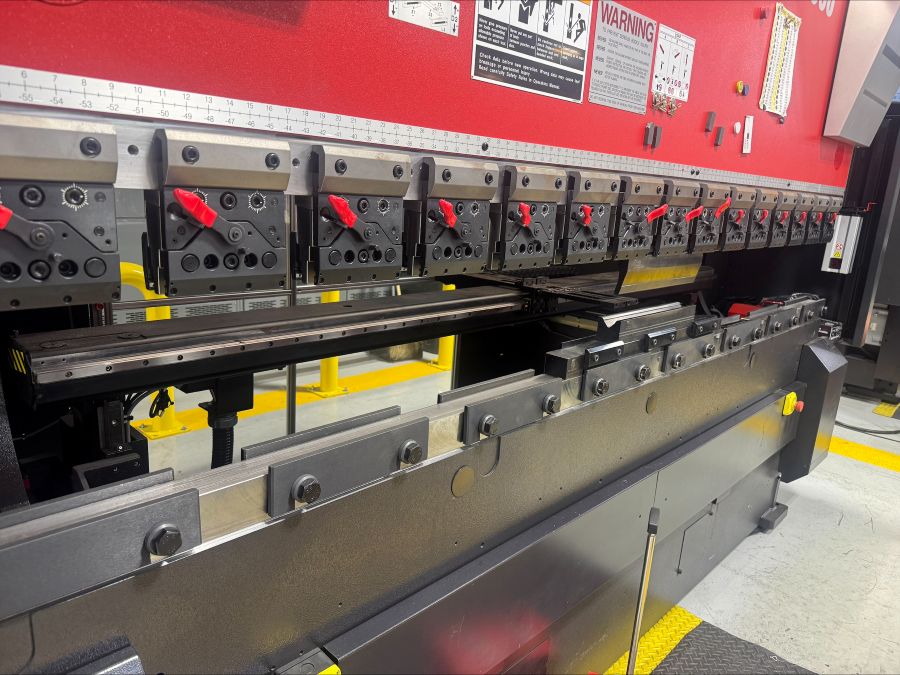

Backgauge Specifications
Backgauge Axes: 6
RAM: D1&D2
Backgauge: L1&L2
Backgauge Horizontal: Y1&Y2
Backgauge Vertical: Z1&Z2
Ram Repeatability: .00004”
Backgauge Speed (L-Axis): 1,181 inch/min
Backgauge Speed (Y-Axis): 2,362 inch/min
Backgauge Speed (Z-Axis): 394 inch/min
System Dimensions
Total Length: 189”
Total Width: 110”
Total Height: 109.84”
Ground Height: 109.6”
Total Weight: 15,873 lbs.
