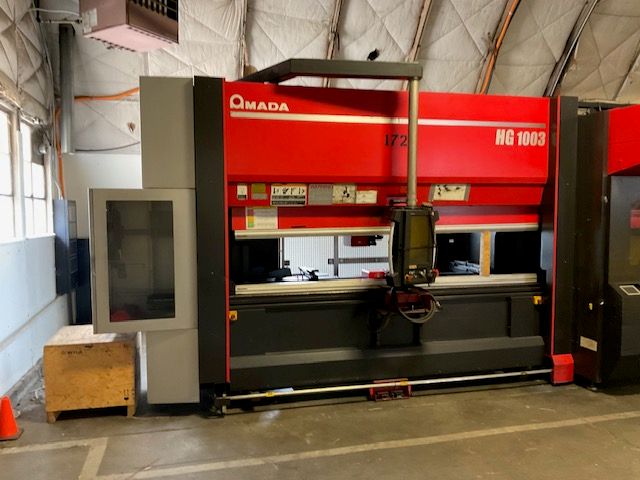

110 Ton x 10′ Amada HG1003ATC Servo-Hydraulic Press Brake
with Amada “ATC” Auto Tool Changer
Manufactured in 2015
Machine Number 1223
Request Quote
Amada HG ATC Series
AMADA’s HG press brake and Automatic Tool Changer (ATC) provide the optimal bending solution for high-mix, low-volume production. The HG ATC Series is an advanced system that achieves precise and economical bending results even in lot sizes of less than ten. The ATC is equipped with 18 magazines for dies and 15 for punches — providing the flexibility to accommodate rush jobs seamlessly.
System Specifications
Model: HG-1003 ATC
Tonnage (US): 110
Max. Bend Length: 118.1”
Distance between Housings: 106.2”
Max. Stroke Length: 9.8”
Open Height: 23.4”
Throat Depth: 17.7”
Crowning System: (2) Hydraulic Crowning Cylinders
Ram Repeatability: ±0.00004”
Rapid Approach Speed: 520 inches/minute
Pressing Speed: 47 inches/minute
Return Speed: 590 inches/minute
Backgauge: 8 Axis (6 Axis plus 2 Axis L-shift)
Oil capacity: 12.7 gal.
Control: AMNC 3i
Foot Pedal: (2) two auto slide and remote
Bend Angle Control: Auto Bi-S (Single)
Safety: safety device, safety gate (tool change), light guard (slide pedal), PILZ PSEN P (operation)
Overall Machine Dimensions
Length: 238.1”
Width: 126.6”
Height: 117.3”
Total Weight: 26,840 lbs
Supply Power: 200V, 22kVA
Specifications Automatic Tool Changer (ATC)
Tool style: AMTS ATC
Punch stockers: 15
Die stockers: 18
ATC location: Right hand
Auto tool layout range: 118.1”
Minimum tool pitch: 0.196”
“V” Range: 0.157-1.57”
Punch reversal unit: Stocker 1-12 reversible only
Punch height: 6.7” standard
Equipped With
Misc Tooling
