110 Ton Amada HFE-100-3S Press Brake
Manufactured in February 2001
Request Quote
Amada HFE 100-3S
The Amada HFE series was Amada’s populare line of hydraulic press brakes. They are equipped with the Operatuer 7-Axis CNC Control and backgauge plus a composite bed for consistent bending. This Machine has a 110 US ton capacity and 122″ bend length.
Specifications
Hydraulic Press Brake
Capacity: 110 U.S. tons
Bend Length: 122 inches
Maximum Stroke Length: 7.8 inches
Open Height: 18.5 inches
Throat Depth: 16.5 inches
Distance Between Housings: 106 inches
Ram Repeatability: +/- 0.00004 inches
Table Width: 2.36 inches
Approach Speed: 7.87 inches per second
Bending Speed: 0.04 to 0.787 inches per second, programmable
Return Speed: .04 to 7.87 inches per second, programmable
Overall Machine Length: 145 inches
Machine Width: 58 inches
Machine Height: 106 inches
Hydraulic Oil Capacity: 56 gallons
Machine Weight: 14,882 pounds
Motor HP: 25
Foundation: 6 inch concrete slab

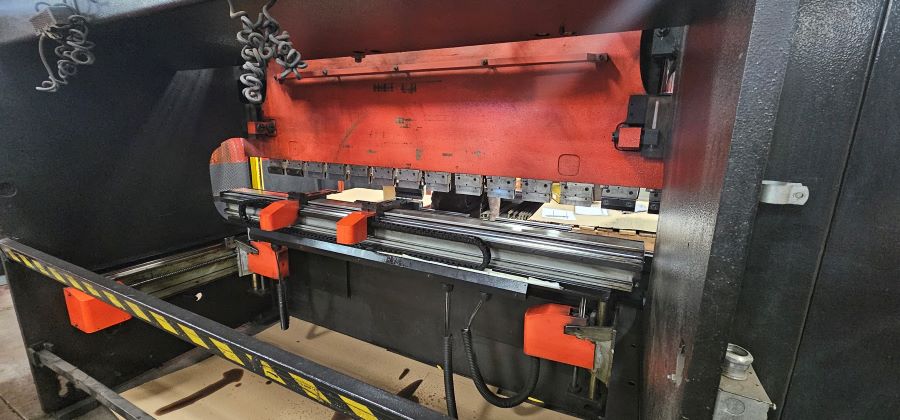

Backgauge
Model: Amada Type B
Repeatability: L Axis +/- 0.0004 inches
Movement Range
X Axis: 27.5/37.5 inches
R Axis: 9.84 inches
Z Axis: 94 inches
Feed Speed
X Axis: 19.5 inches per second
R Axis: 6.2 inches per second
Z Axis: 39.3 inches per second
Minimum Command Unit: 0.0001 inch
CNC Controller
Model: Amada OPERATEUR
Axes of Control: 7 standard
Y1Y2 Ram depth
X1X2 Backgauge
Z1Z2 Horizontal finger position of two stoppers
R Vertical finger position of two stoppers
Input Method: Keyboard, 3.5″ diskette and RS232
Display: 12″ Color VGA
Program Storage: 60 in active memory plus 30 on diskette
Bends per Program: 25
Die Library: 70 dies
Punch Library: 30 punches
