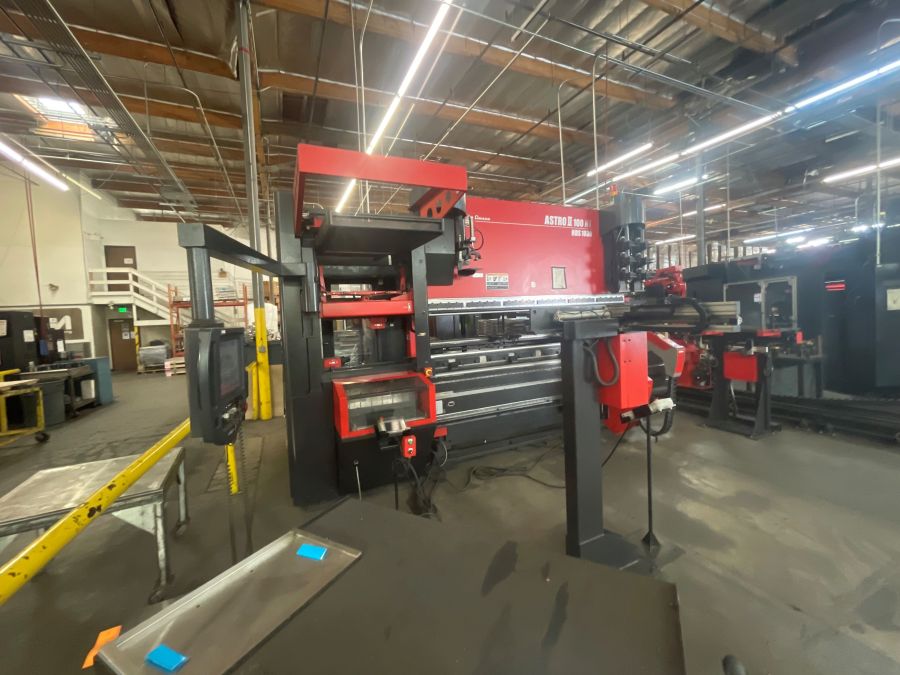

Amada Astro II 100NT Bending Cell Press Brake Model HDS-1030
With Automatic Tool Changer
Manufactured in 2015 – Installed in 2016
Request Quote
Amada Astro Bending Cell
The Amada Astro is a high precision robotic bending system. The Amada Astro 100 provides the solution to many common brake department problems. Problems associated with bending bottlenecks, lengthy and complex setup, and skilled brake operator shortages are alleviated with the Astro’s robotic bending system and software-driven technology.
Capable of fully automated operations, the Astro handles a broad range of sophisticated bending applications, including complex, multiple bend sequences and tapered bends. This specific machine is the Astro II 100NT bending cell with the 110-Ton Amada HDS-1030 press brake.
Bending Robot Specifications
Model: Astro II 100NT Cell
Drive Motors: AC Servo (5) Motors
Maximum Part Size: 31.5″ x 39.5″
Maximum Material Weight: 33 lbs
Flange Length Repeatability: 0.004″
Gripper Specifications: One touch pins
Power Requirements: 200 VAC 35 KVA 100A 3 Phase
Air Requirements: 30 ft./min. @71 PSI ” Dia. Line
Press Brake Specifications
Maximum Tonnage: 110 U.S. Tons
Bed Length: 118.11”
Maximum Stroke Length: 7.87”
Open Height: 19.7”
Throat Depth: 13.5”
Distance Between Housings: 106.3”
Ram Repeatability: 0.00004”
Angularity Accuracy: 0.25
Approach Speed: 7.87 inches per second
Bending Speed: 0.78 inches per second (Max) programmable
Return Speed: 7.87 inches per second
Hydraulic Oil Capacity 15.2 gallons
Backgauge
Repeatability L Axis: 0.0001”
Movement Range L Axis: 27.55”
Y Axis: 106.3”
Z Axis: 9.8”
Feed Speed L Axis: 1181 inches per minute
Minimum Command Unit: 0.001”
Control Specifications
Model: AMNC/PC
Axes of Control: Eight
D1D2 Ram depth
L1L2 Backgauge
Z Vertical finger position
Y1&Y2 Horizontal Finger movement, side to side
CC Bed crowning
Input Method: Touch screen
Display 14.1″ color LCD
Bends per Program 25
Part Manipulation Robot Specifications
Model: MP-20
Number of Axes: 6
Robot Hand Specifications: Air suction
Maximum Sheet Size: 31.5″ x 39.5″
Maximum Part Weight: 33 lbs.
Part Load Capabilities: 2 Loading Configurations
Part Unload Stacking: 5 Unloading Configurations
Machine Weight (MP-20): 441 lbs
