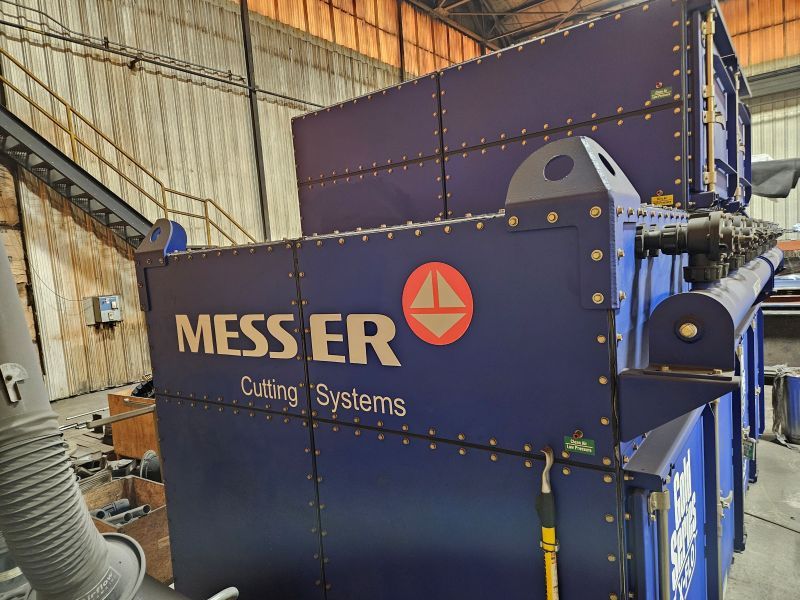

Messer Titan III Plasma Cutting System
Equipped with Donaldson Gold Series Dust Collector
Manufactured in 2018
Machine Number 1270
Request Quote
Messer Titan Series Plasma Cutters
The Titan III was designed for demanding environments. Utilizing an innovative end truck design, which houses and isolates the electronics away from the plate processing area, the Titan III can easily handle both heavy plate and around-the-clock operation. The machine features linear ways in the Y-axis, pitch-line engaged rack and pinions, and our high productivity SL lifters for smooth, repeatable cutting or marking. This machine is equipped with a Donaldson Gold Series GSX32 Dust Collector and a 12′ x 61′ 4M table with front and rear exhausting for two machines. There is an option to build a table to buyer’s spec.
Specifications
Model: Titan III
Max. Table Width: 160”
Machine Rail Guage: 177.50”
Machine Working Width: 257.50”
Overall Machine Clearance: 293.50”
Machine Motion Accuracy: ± 0.018” in 72” of travel
Machine Motion Repeatability: ± 0.005” in 72” of travel
Material Cutting Capability: 26 gauge to 2” plate thickness
Cut Material: Mild Steel, Stainless Steel, Aluminum
Contouring Speeds: up to 400 ipm
Positioning Speeds: up to 1,700 ipm
Power Track in both axes
Volts: 480/3/60
Dust Collector
Make: Donaldson
Model: Gold Series GSX32
Date Manufactured: September 2022
Air Volume/Pressure: 13,000 c.f.m/13.00” w.g.
Motor HP/FLA/RPM: 50/56/3,540
Motor Voltage/HZ ph: 460/60/3
Dust Type: Plasma, Fumes
Equipped With
Donaldson Gold Series GSX32 Dust Collector
Messer CNC Control
(4) Hypertherm Plasma Units
* HPR260 – (2) units
* HPR400XD – (2) units
Table: 12’ x 61’ 4M Table with front and rear exhausting for two machines
*Can build table to buyer’s spec-contact for details
