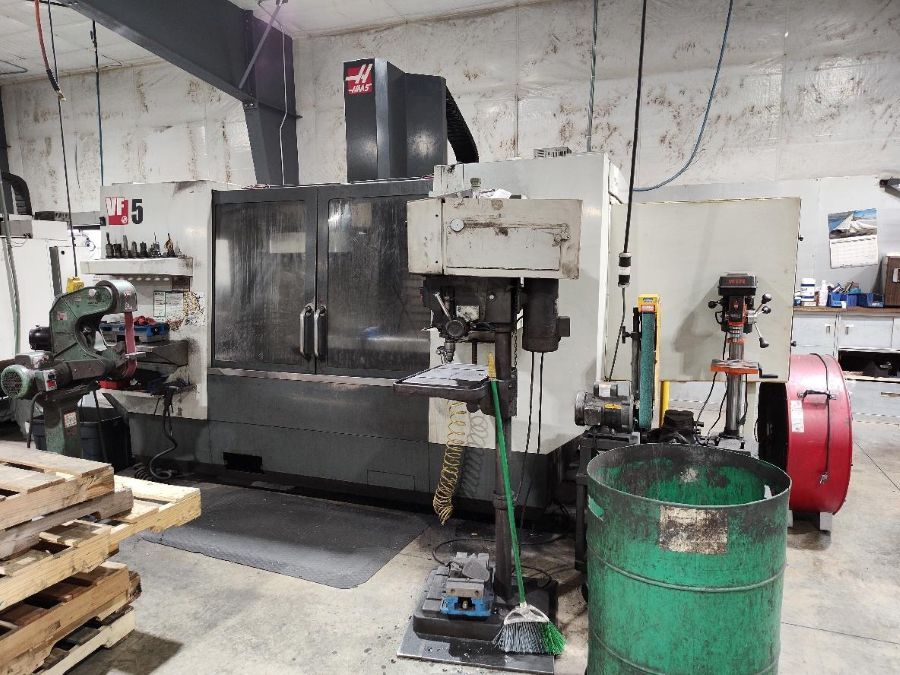

Haas VF5 3-Axis CNC Mill
Manufactured in April 2011
Machine Number 1152
Request Quote
Haas VF Vertical Machining Centers
Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs. The VF-3 through VF-5 models feature larger work envelopes than the smaller VF-1 and VF-2 models.
Specifications
Model: VF – 5/40
Travels
X-Axis: 50”
Y-Axis: 26”
Z Axis: 25”
Spindle Nose to Table ~ max.: 29.2”
Spindle Nose to Table ~ min.: 4.2”
Spindle
Max. Rating: 30 hp
Max. Speed: 8100 rpm
Max. Torque: 90 ft-lbf @ 2000 rpm
Drive System: Inline Direct-Drive
Taper: CT40|BT40|HSK-A63
Bearing: Air/Oil injected
Cooling: Liquid Cooled
Table
Length: 52”
Width: 23”
T-slot Width: 0.626” to 0.630”
T-slot Center Distance: 3.15”
Number of Std T-Slots: 7
Max. Weight on Table (evenly distributed): 4000 lbs.
Feedrates
Max. Cutting: 500 ipm
Rapids on X: 710 ipm
Rapids on Y: 710 ipm
Rapids on Z: 710 ipm
Axis Motors
Max. Thrust X: 2550 lbf
Max. Thrust Y: 4100 lbf
Max. Thrust Z: 4100 lbf
Tool Changer
Type: Carousel
Capacity: 20
Max. Tool Diemeter (full): 3.5”
Tool-to-Tool (avg): 4.20 s
Chip-to-Chip (avg.): 4.50 s
General
Coolant Capacity: 95 gal
