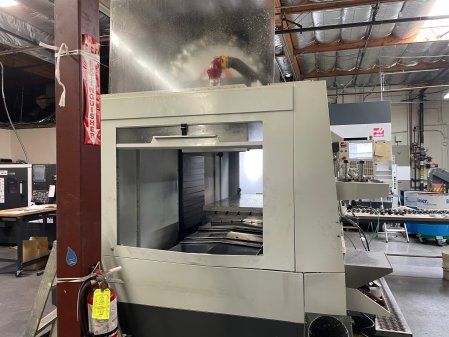

Haas VF-6/50 Vertical Machining Center
Manufactured in 2022
Machine Number 1219
Request Quote
Haas VF Vertical Machining Centers
Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs.
Specifications
Travels
X-Axis: 64”
Y-Axis: 32”
Z Axis: 30”
Spindle Nose to Table (~max): 35”
Spindle Nose to Table (~min): 5.0”
Spindle
Max. Rating: 30 HP
Max. Speed: 7500 RPM
Max Torque: 340 ft-lbf @ 700 rpm
Spindle Taper: CT50
Table
Length: 64”
Width: 28”
T-slot Width: 0.626” to 0.630”
T-slot Center Distance: 4.92”
Number of Std T-Slots: 5
Max. Weight on Table (evenly distributed): 4000 lbs.
Feedrates
Max. Cutting: 500 ipm
Rapids on X: 600 ipm
Rapids on Y: 600 ipm
Rapids on Z: 600 ipm
Axis Motors
Max. Thrust X: 3400 lbf
Max. Thrust Y: 4100 lbf
Max. Thrust Z: 5600 lbf
Tool Changer
Type: SMTC
Capacity: 30+1
Max. Tool Diameter (full): 4”
Max. Tool Diameter (adjacent empty): 10.0”
Max. Tool Length (from gage line): 16”
Max. Tool Weight: 30 lb
Tool-to-Tool (avg): 4.20 s
Chip-to-Chip (avg.): 6.30 s
General
Coolant Capacity: 95 gal
Machine Dimensions: 195” x 102” x 131.5”
Machine Weight: 25500 lbs
