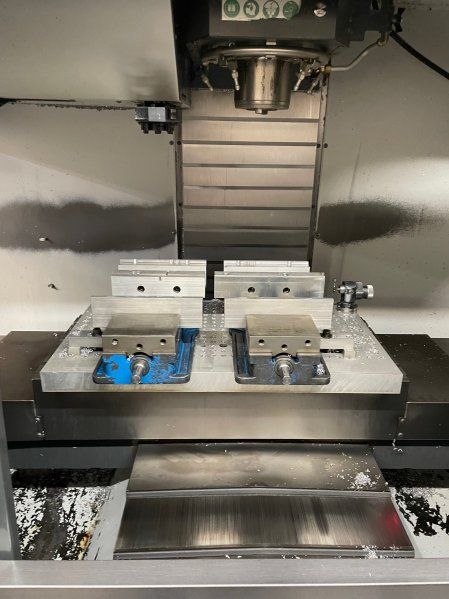

Haas VF-2SS Vertical Machining Center
Manufactured in 2018
Machine Number 1217
Request Quote
Haas VF Vertical Machining Centers
Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs. The VF-3 through VF-5 models feature larger work envelopes than the smaller VF-1 and VF-2 models.
Specifications
Travels
X-Axis: 30”
Y-Axis: 16”
Z Axis: 20”
Spindle Nose to Table (~max): 24”
Spindle Nose to Table (~min): 4”
Spindle
Max. Rating: 30 HP
Max. Speed: 12,000 RPM
Spindle Taper: CAT 40
Rapid Traverse Rate: 1,400 IPM
Table
Length: 36”
Width: 14”
T-slot Width: 0.626” to 0.630”
T-slot Center Distance: 4.92”
Number of Std T-Slots: 3
Max. Weight on Table (evenly distributed): 1500 lbs.
Feedrates
Max. Cutting: 833 ipm
Rapids on X: 1400 ipm
Rapids on Y: 1400 ipm
Rapids on Z: 1400 ipm
Axis Motors
Max. Thrust X: 1995 lbf
Max. Thrust Y: 1995 lbf
Max. Thrust Z: 3085 lbf
Tool Changer
Type: SMTC
Capacity: 30+1
Max. Tool Diameter (full): 2.5”
Tool-to-Tool (avg): 1.80 s
Chip-to-Chip (avg.): 2.40 s
General
Coolant Capacity: 55 gal
