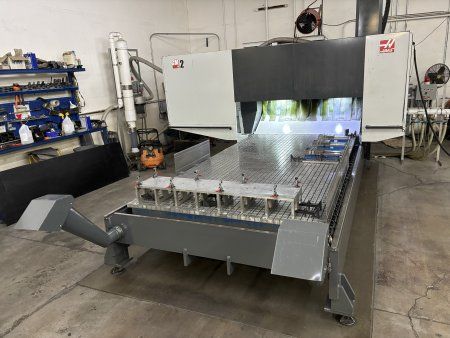

Haas GM-2 Heavy Duty 3-Axis CNC Gantry Mill
Equipped with Vacuum Table, Vac-U-Lock: 4 Zone w/ Vacuum Pump
Manufactured in 2020
Machine Number 1300
Haas GM-2 Gantry Mill
The GM-2 is a heavy-duty 3-axis gantry mill designed for large-part machining, such as airframe components, large plates, and long extrusions. The machine’s rigid steel construction provides a very stable cutting platform, and a 1″ (25 mm) thick aluminum table is standard. This particular machine is equipped with some upgrades to increase productivity.
Specifications
Model: Haas GM-2 Heavy Duty 3-Axis CNC Gantry Mill
Travels
X-Axis: 145”
Y-Axis: 87.5”
Z Axis: 22”
Spindle Nose to Table ~ max.: 26”
Spindle Nose to Table ~ min.: 4”
Spindle
Taper Size: 40
Spindle Speed: 15,000 RPM
Spindle Power: 30 HP
Table
Length: 144”
Width: 72”
Between Columns: 75”
Max. Weight on Table: 6,000 lbs.
Tool Changer
ATC: SMTC Capacity 30+1 Side Mount
Max Tool Diameter: 2.5”
Max Tool Weight: 12.0 lb
Feedrates
Max. Cutting: 472 ipm
Rapids on X: 472 ipm
Rapids on Y: 1889 ipm
Rapids on Z: 1181 ipm
General
Coolant Capacity: 95 gal
Air Required: 100 psi, 4 scfm
Power: 220v/3-Phase
Dimensions
Overall Dimensions: 226” x 143” x 109” High
Weight: 20,420 lbs
Options Included
Standard Program Memory, 1 GB
Aluminum Table
Chip Auger
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
HaasDrop
Second Home Position
Media Display M-Code; M130
Remote Jog Handle with Touchscreen Display
Rigid Tapping
30+1 Side-Mount
WiFi Connection for the Haas Control
Visual Part Programming System
User-Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
CT-Style Tool Changer Grippers
15,000-rpm Spindle
Through-Spindle Coolant
4th-Axis Drive and Wiring
Wireless Intuitive Probing System
Automatic Air Gun
CNC Control Cabinet Cooler
Gantry Router Coolant System
Minimum Quantity Lubrication
Through-Tool Air Blast
8 Spare M Functions
High-Speed Machining
M-Code/MFIN Cable Assembly
Vacuum Table, Vac-U-Lok: 4-Zone, with Vacuum Pump
