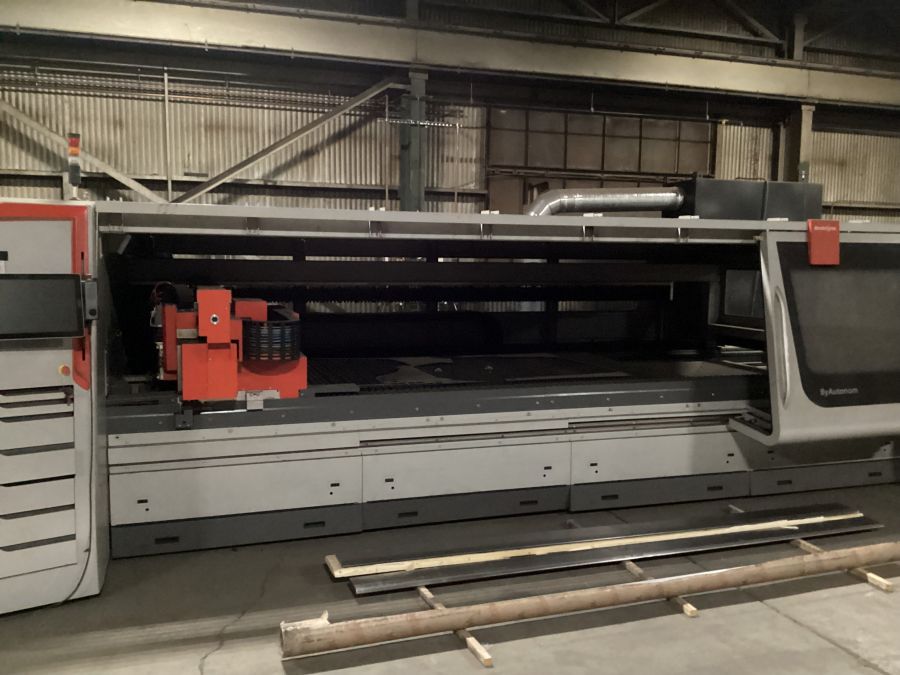

6000-Watt Bystronic ByAutonom 4020 CO2 Laser
With ByLaser 6000 Resonator
Manufactured in 2017
Machine Number 1297
Request Quote
Bystronic Autonom 4020
The Bystronic Autonom 4020 can process a 4 x 2 m sheet quickly and economically. These machines have a high degree of autonomy thanks to Collision Detection, lens-cassette changer, nozzle changer, and automatic nozzle alignment. This reduces non-productive time and increases process reliability. Fewer operator interventions are required, thus freeing up time to concentrate on planning and control.
Specifications
Construction Length: 590”
Construction Width: 303”
Construction Height: 95”
Nominal Sheet Size (X): 160”
Nominal Sheet Size (Y): 80”
Cutting Area (X): 160”
Cutting Area (Y): 80”
Cutting Area (Z): 3.2”
Maximum positioning speed simultaneous: 6653 ipm
Maximum axis acceleration: 1180 in/s²Positioning accuracy Pa: +/- 0.004”Repeatability Ps: +/- 0.002”Edge detection accuracy: +/- 0.02”
Maximum workpiece weight: 3483 lbs.
Laser Source: ByLaser 6000
Pulse frequency: 1-2500 Hz
Power: 6000 watts
Wavelength: 10,6 microns
Steel (Max. cutting sheet thickness): 1.000”
Stainless Steel (Max. cutting sheet thickness): 1.000”
Aluminum: 0.600”
Total electric consumption of system (exhaust, chiller): 80 kW
