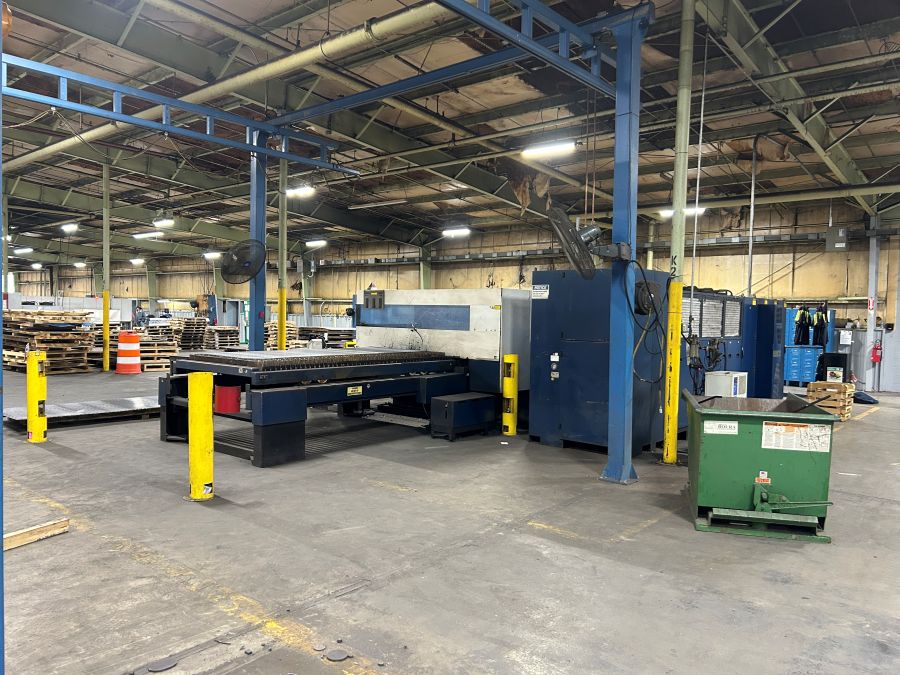

5000-Watt Trumpf TruLaser 3030 Laser Cutting System
~ 37,790 “Beam On” hours as of February 2025
Manufactured in 2013
Request Quote
Trumpf TruLaser 3030 5000-watt CO2 laser
The Trumpf TruLaser 3030 is the updated version of the popular TCL-3030 laser, the “workhorse” of the Trumpf laser lineup. The TruLaser is a versatile and reliable 5’ x 10’ laser cutting system equipped with a high precision torque drive in combination with direct linear drives for high speed, high precision, material processing. This machine features Trumpf’s TruFlow 5000 watt resonator for efficient processing of materials up to one inch thick.
Specifications
Working range:
X axis 3000 mm (10′)
Y axis 1500 mm (5′)
Z axis 115 mm (5″)
Maximum material thickness with TruFlow 5000:
Mild steel 25 mm (1″)
Stainless steel 20 mm (7/8″)
Aluminum 12 mm (1/2″)
Maximum simultaneous axis speed: 140 m/min (~ 5500 IPM)
Machine weight: 14000 kg (30,865 lbs)
Trumpf Laser
-TruFlow 5000 with optimized standby incl. beam tube ventilation with N2
-Maintenance-free radial turbine blower
-Radio-frequency excitation
-Laser control TASC 3
-Laser power control
-Logbook function laser
Cutting Head
-LensLine
-Laser cutting head with 250mm lens
-Universal quickchange device for cutting head (UTI)
-ControlLine
Control
-Control model is Sinumerik 840D SL
Data Transmission
-USB-interface
-RJ45 network connection
Safety
-CE label
-Light barriers
-Monitoring system
-Multi chamber exhaust system
-Compact dust extractor
-Machine enclosure with Macrolon panels
