5000-Watt Prima Power Platino 2040

Manufactured in 2009

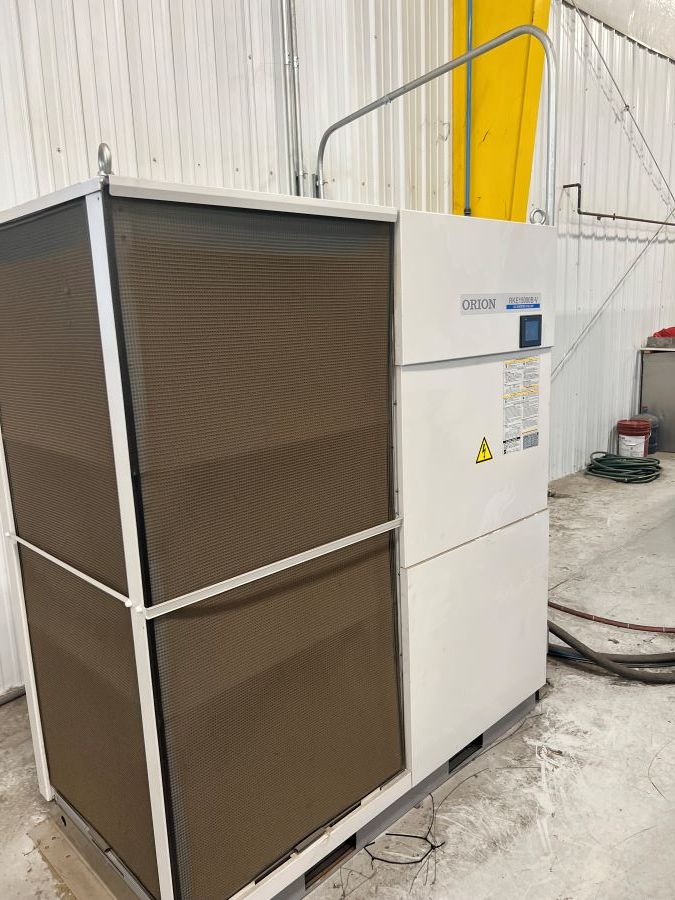

763-Platino-2040-Chiller-Close

Image 6 of 7

Prima Power Platino 2040

Platino is the general purpose 2D laser cutting machine by Prima Power utilized around the globe across a multitude of applications, manufacturing demands, and budgets.  The Platino is suitable for every application.  Change over to tube processing can be achieved with zero setup time.  Thanks to its wide range of automation modules, Platino is the right solution for both small batches and large-scale production.

Specifications:

Model: PLT 2040
Axis Strokes:
X-axis: 4064 mm (160”)
Y-axis: 2032 mm (80”)
Z-axis: 150 mm (5.9”)

Maximum Speed:
Single Axis X,Y: 80 m/min
Trajectory X,Y: 110 m/min

Accuracy:
X,Y,Z positioning accuracy (Pa): 0.03 mm
Repeatability (Ps): 0.03 mm

Maximum Overall Dimensions:
Length: 12,900 mm
Width: 4,200 mm
Height: 2,500 mm

Weight: 12,000 kg (26,455 lbs)
Standard CO2 Laser Power: 4500 kW
Voltage: 480V
Current: 56A
Frequency: 60Hz

Equipped With:

Convergent CV5000 Resonator
Chiller
