4400-Watt Bystronic Bystar 3015 Laser Cutting System
Manufactured in 2016
Equipped with Byloader 3015 (new in 2022)
Request Quote
Bystronic Bystar 3015
The Bystronic Bystar 3015 is the 5′ x 10′ laser cutting system. Bystronic Bystar lasers are high speed CO2 laser systems and this one is equipped with a Byloader 3015 to make production quick and efficient.
Machine Specifications
Maximum Sheet Size (X): 120″ (3000 mm)
Maximum Sheet Size (Y): 60″ (1500 mm)
X-Travel: 120″ (3048 mm)
Y-Travel: 60″ (1524 mm)
Z-Travel: 6.70″ (170 mm)
Maximum positioning speed axis parallel x,y: 3,150 IPM (80 m/min)
Maximum positioning speed simultaneous: 4,450 IPM (113 m/min)
Maximum axis acceleration: 177”/s² (4.5 m/s²)
Positioning accuracy: ± 0.004 (± 0.1 mm)
Repeatability : ± 0.002 (± 0.05 mm)
Edge detection precision: ± 0.02 (0.5 mm)
Maximum workpiece weight: 1,962 lbs
Machine weight: 29,800 lbs
Bylaser 4400 Specifications
Laser Output: 4400 Watt
Wavelength: 10.6 µm
Polarization: circular
Pulse Frequency: 1-2500 Hz
Maximum Sheet Thickness
Mild Steel: 1.000” (25 mm)
Stainless Steel: 0.750” (20 mm)
Aluminum: 0.500” (12 mm)
Maximum electric consumption of the total system; 56 kW
Options Included
Byloader 3015

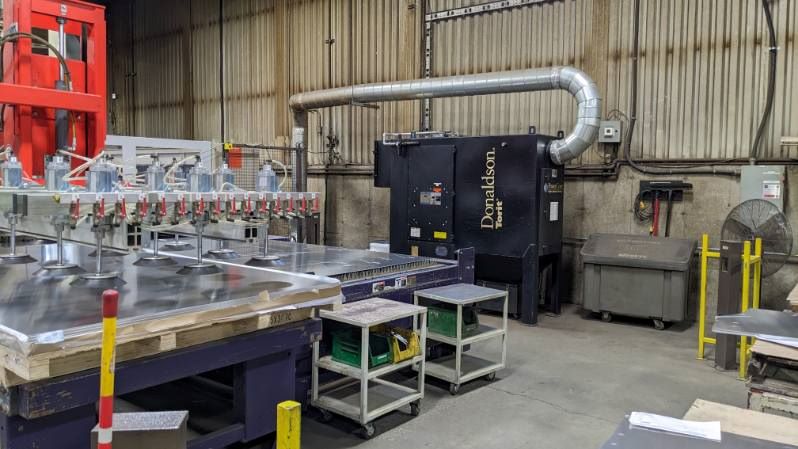

Donaldson Torit TG-4 Dust Collection System
Chiller
Movable Scrap Trays (under cutting area)
Automatic Sheet Edge Sensor
Cut Control
Bypos Auto Focus
Cross Jet Nozzle
Reflection Absorption
5” and 7.5” Capacitive Height Sensing Cutting Heads with Lens
Nozzle Alignment Tool
Automatic Nozzle Cleaning Device
Safety Door in Cutting Area
Automatic Shuttle Tables
