4400-Watt Bystronic Byspeed 3015 Laser
Manufactured in 2005
56,301 run hours as of 7/13/2022, 26,000 “beam hours”, Resonator rebuild in January of 2020
Request Quote
Bystronic Byspeed
The Bystronic Byspeed 3015 is the 5′ x 10′ laser cutting system. All Bystronic Byspeed lasers are high-speed CO2 laser systems known for high productivity and robust design.
Nominal sheet size
X: 120″
Y: 60″
Maximum workpiece weight: 890 kg
Cutting area
X: 120″
Y: 60″
Z: 3.90″
Speeds
Maximum positioning speed parallel axis X,Y: 120 m/min
Maximum positioning speed simultaneous: 169 m/min
Maximum axis acceleration: 30 m/s2
Accuracy
Positioning accuracy Pa: +/- 0,1 mm
Repeatability Ps: +/-0,05 mm
Edge detection accuracy +/- 0,5 mm
Machine dimensions and requirements
Machine weight (approximate): 20,000 kg
Foundation: normal, reinforced industrial floor according to assembly plan
Cutting gas consumption: depending on material
Control
Operation via panel: with 15” touch screen, keyboard and manual control unit
Disk drives: DVD-RW, USD 2.0
Network connection: RI45 connection 10/100 Mbit/s
ByVision control: Standard
Laser source

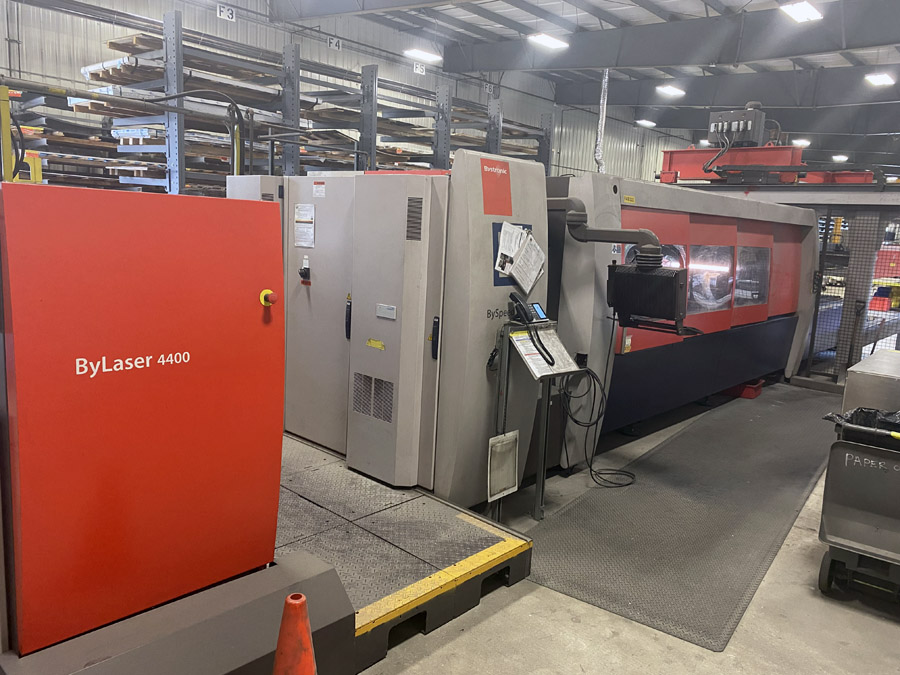

Resonator model: ByLaser 4400
Power: 4400 watts
Wavelength; 10.6 microns
Polartzation: Circular
Pulse frequency: 1-2500 Hz
Equipped with:
Chiller
Dust collector
Load/unload at buyer’s option
