4000-Watt Trumpf TruLaser 3530

Manufactured in 2008

~68,673 Laser On Hours and ~29,875 Beam On Hours as of July 2023

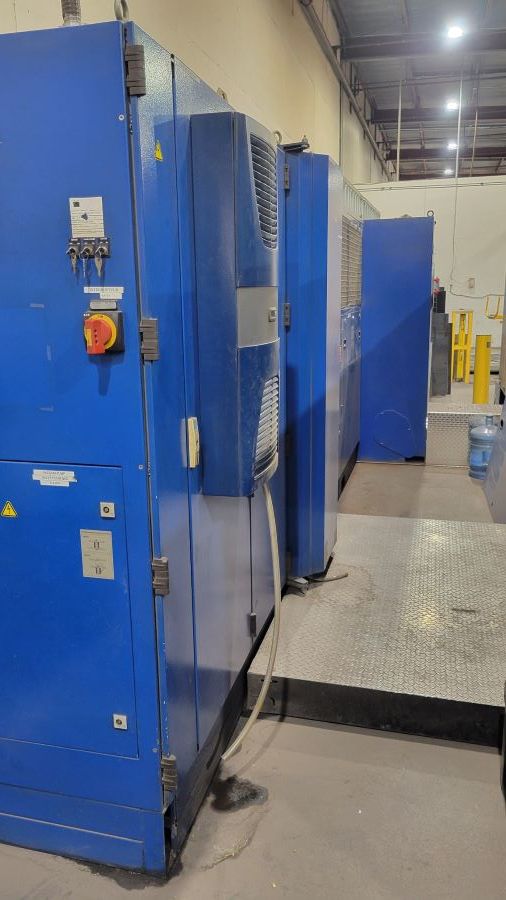

754-Trumpf-Trulaser-3530-cabinets

Image 5 of 7

Request Quote

Trumpf TruLaser 3530 4000-Watt CO2 Laser

Is based on the popular Trumpf Trulaser 3030 motion system, but included an additional axis. The additional Y axis, the so-called Sprint axis, has been integrated in the motion unit. Unlike the standard Y axis, the Sprint axis does not move the entire motion unit but only the cutting head. This makes for considerably higher dynamics and the cycle time can be reduced by up to 30%, depending on the part geometry.

Specifications:

Working range:
X axis 3000 mm (10′)
Y axis 1500 mm (5′)
Z axis 115 mm (5″)
Maximum material thickness:
Steel: 1”
Stainless steel: 1/4”
Aluminum: 1/4″
Maximum simultaneous axis speed: 140 m/min (~ 5500 IPM)
Machine weight: 14000 kg (30,865 lbs)

Equipped with:

Dust Collector
Transformer
