4000-Watt Trumpf TruLaser 3040 Laser Cutting System

Manufactured in 2009

Machine Number 1311

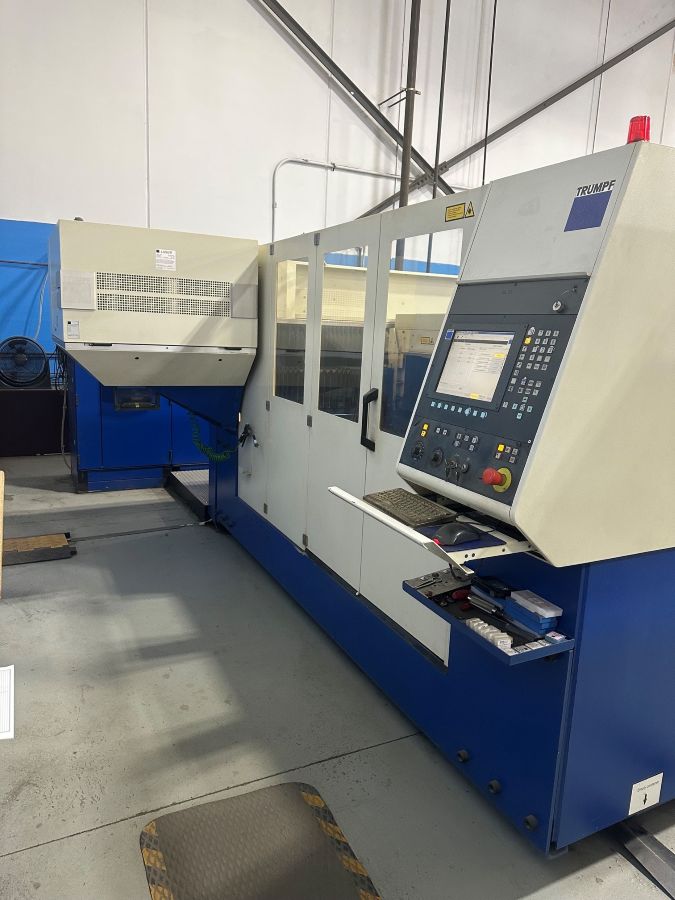

1311-Trumpf-TruLaser-3040-4kW-Control-and-Resonator

Image 2 of 8

The Trumpf 3040 CO2 laser

The Trumpf Trulaser 3040 is the 4 x 2 meter version of Trumpf’s popular 3000 series of CO2 laser cutting machines. This machine is the latest of the 3000 series versions and the pinnacle of CO2 laser cutting. As with all the Trumpf 3000 series lasers, this machine features a Siemens control and TruFlow 4000 resonator featuring the electromagnetic bearing friction-less turbo.

Specifications

Working Range:
   X axis: 160″
   Y axis: 80″
   Z axis: 4.5″
Workpiece Maximum Weight: 3748 lbs.
Maximum Speeds
   Simultaneous: 5512 inches per minute
Accuracy
   Position deviation Pa: 0.004″
   Average position range Ps: 0.001″
Maximum Sheet Thickness
   Mild Steel: 0.8″
   Stainless Steel: 0.6″
   Aluminum: 0.4″

Dimensions and Weight

Length: 472″
Width: 209″
Height: 87″

Resonator

Laser Data: TruFlow 4000
Maximum Power: 4000 Watts
Wavelength: 10.6 microns

Equipped with

Trumpf CNC Control: Siemens Sinumerik 840D SL
Riedel Chiller
Dust Collector
