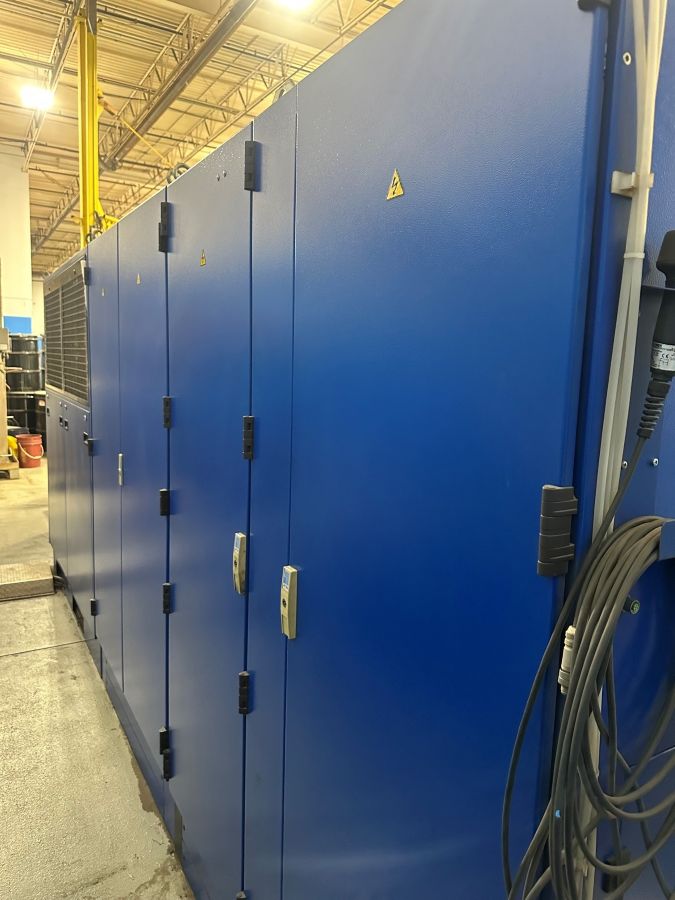

4000-Watt Trumpf TruLaser 3040 Laser Cutting System
Manufactured in 2009
Machine Number 1311
Request Quote
The Trumpf 3040 CO2 laser
The Trumpf Trulaser 3040 is the 4 x 2 meter version of Trumpf’s popular 3000 series of CO2 laser cutting machines. This machine is the latest of the 3000 series versions and the pinnacle of CO2 laser cutting. As with all the Trumpf 3000 series lasers, this machine features a Siemens control and TruFlow 4000 resonator featuring the electromagnetic bearing friction-less turbo.
Specifications
Working Range:
X axis: 160″
Y axis: 80″
Z axis: 4.5″
Workpiece Maximum Weight: 3748 lbs.
Maximum Speeds
Simultaneous: 5512 inches per minute
Accuracy
Position deviation Pa: 0.004″
Average position range Ps: 0.001″
Maximum Sheet Thickness
Mild Steel: 0.8″
Stainless Steel: 0.6″
Aluminum: 0.4″
Dimensions and Weight
Length: 472″
Width: 209″
Height: 87″
Resonator
Laser Data: TruFlow 4000
Maximum Power: 4000 Watts
Wavelength: 10.6 microns
Equipped with
Trumpf CNC Control: Siemens Sinumerik 840D SL
Riedel Chiller
Dust Collector
