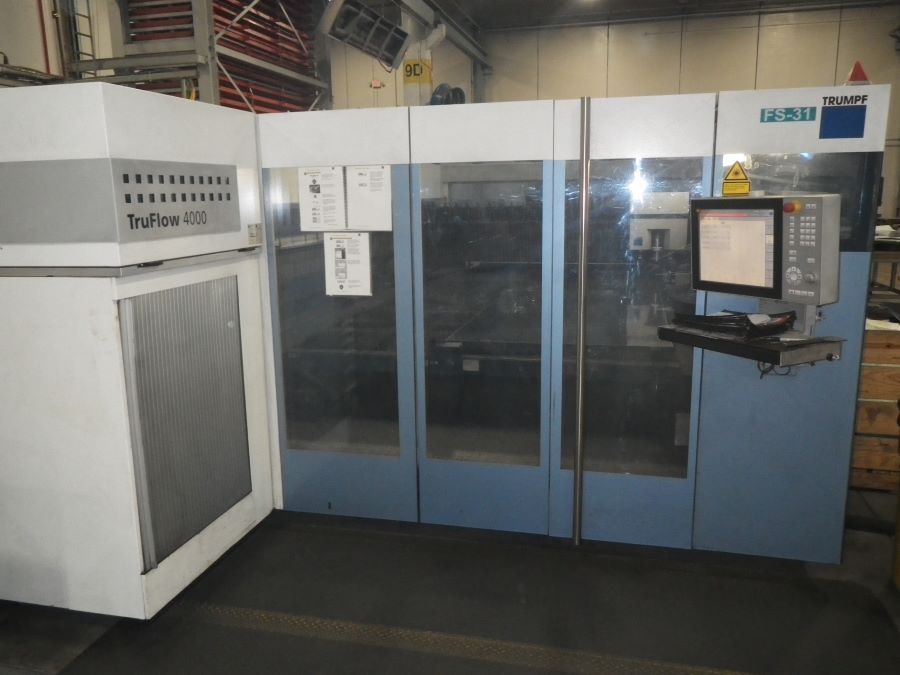

4000-Watt Trumpf TruLaser 3040 Laser Cutting System
Manufactured in 2016
~17,535 Cut Hours and ~52,735 Power on Hours
Equipped with Siemens Control and TruFlow 4000 Resonator
Request Quote
The Trumpf 3040 CO2 laser
The Trumpf Trulaser 3040 is the 4 x 2 meter version of Trumpf’s popular 3000 series of CO2 laser cutting machines. This machine is the latest of the 3000 series versions and the pinnacle of CO2 laser cutting. As with all the Trumpf 3000 series lasers, this machine features a Siemens control and TruFlow 4000 resonator featuring the electromagnetic bearing friction-less turbo.
Machine Specifications
Working range:
X axis: 160″
Y axis: 80″
Z axis: 4.5″
Workpiece Maximum weight: 3748 lbs.
Maximum Speed Simultaneous: 5512 inches per minute
Accuracy
Position deviation Pa: 0.004″
Average position range Ps: 0.001″
Resonator
Laser data: TruFlow 4000
Maximum power: 4000 Watts
Wavelength: 10.6 microns
Machine Dimensions
Length: 472″
Width: 209″
Height: 87″
Equipped With
Trumpf CNC control: Siemens Sinumerik 840D SL
