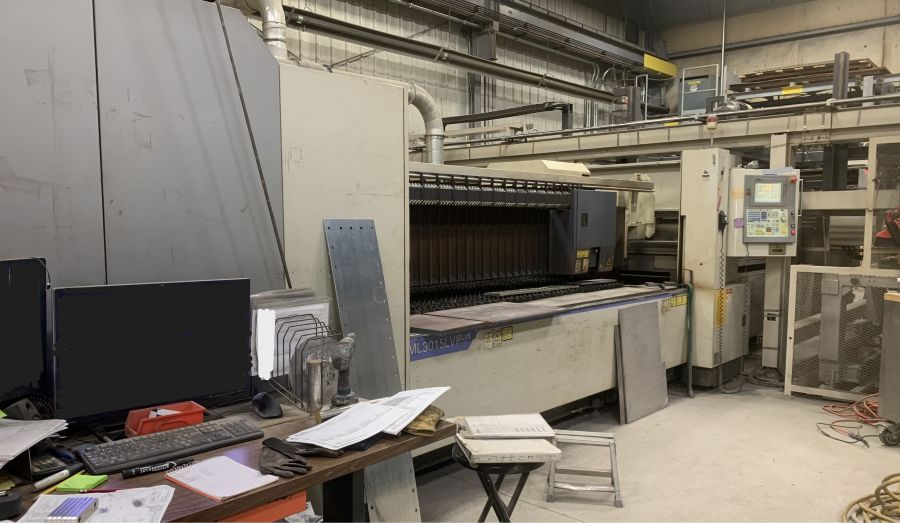

4000-Watt Mitsubishi ML-3015 LVP-Plus Laser Cutting System
Manufactured in September 2006
Machine Number 1005
Request Quote
LVP Series Laser
The Mitsubishi LVP series is the “workhorse” of Mitsubishi’s laser line known for reliability, while still a very productive laser cutting system. Mitsubishi designs and manufactures each critical component that goes into every Mitsubishi Laser system. Every individual component is performance-matched to excel in the most demanding environments. This machine is a 5′ x10′ shuttle table laser with a 4000-watt Mitsubishi resonator model 40CFX.
Specifications
Machine Structure: Precision rack and pinion, direct drive
Travel Drive Method: X, Y, Z simultaneous 3 axis control
X-Axis Stroke: 122.05″
Y-Axis Stroke: 61.02″
Z-Axis Stroke: 3.54″
Maximum Work Piece Size: 120.08″ x 60.04″
Maximum Processing Feed Rate: 1180 IPM
Maximum Workpiece Weight: 2050 lbs.
Table Pass Height: 33.5″
Rapid Travel Speeds:
Single Axis: 3345 IPM
Simultaneous: 4730 IPM
Minimum Command Input: 0.001mm/.0001″
Drive Motor Type: Intelligent AC Servo
Dimensions and Pallet Information
Machine Unit Dimensions: 418.5″ W x 90.6″ H x 183″ D
Total System Weight: 26,325 lbs.
Pallet Change Time: Approximately 25 seconds
Pallet Changer Weight: 4500 lbs.
Pallet Changer Drive Mechanism: Chain
Installation Dimensions: 473.4″ x 227.7″
Floor Space Requirement: 750 square feet
Electrical Requirements
Electrical Requirements: 208 VAC +/- 5%, 3 phase, 60 Hz
Motion System, CNC control: 71 KVA (total machine usage)
Laser Resonator: 202 (Full load Amps)
CNC Control Specifications
Type: Self Contained-Simple Dust Proof Design
CPU: 64 Bit
Display Unit: 10.4” TFT Color LCD Touch Screen
Hard Disk Drive Capacity: 2.0 GB
Equipped With
Pallet Changer
Chiller
