4000-Watt Mazak Optiplex 3015 Laser Cutting System
Manufactured in September 2011
Machine Number 1291
Request Quote
CO2 Flying-Optics Laser
The Mazak Optiplex 3015 is Mazak’s top of the line CO2 flying-optics style laser cutting system. The Optiplex series is designed for high production laser cutting and all are equipped with shuttle tables, Mazak preview control and Mazak’s many “Intelligent Set Up” and “Intelligent Monitoring” systems. This Mazak Optiplex laser is equipped with a 4000 watt Panasonic resonator for efficient processing of many material thicknesses.
Specifications
Machine Structure: Flying optics
Maximum Workpiece Dimensions: 120” x 60” x 1”
Maximum Workpiece Weight: 2,050 lbs.
Machine Travels
X-axis: 122.0″
Y-axis: 62.20″
Z-axis: 3.9″
Work Table Height: 35.43″
Maximum Material Thickness
Mild Steel: 1.00″
Stainless Steel: 0.500″
Aluminum: 0.375″
Motion Drive System Design
X, Y Axis: Rack and Pinion drive
Z Axis: Ball screw drive
Number of Control Axes: 3
Rapid Travel Speed
X, Y Axis: 4,724 ipm
Positioning Accuracy:
X,Y Axis: 0.0002 inch/19.68 inch
Z Axis: 0.0004 inch/3.94 inch
Repeatable Accuracy
X, Y Axis: 0.0012″
Maximum Processing Feedrate
X, Y Axis: 2,362 IPM
Voltage 3 Phase: 230-460 V

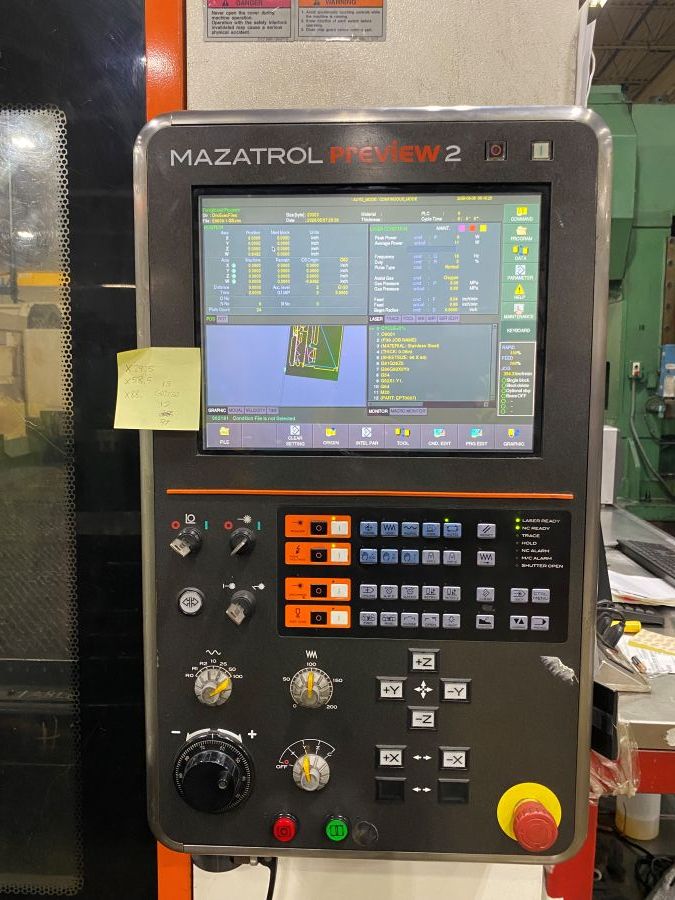

Control
MAZATROL Preview 2
CPU: 64 bit
Display Screen: 15″ Color LCD
Memory Capacity: 16 GB (Program memory capacity: 1 GB)
Position Detection System: Encoder
Minimum Command Unit: 0.0001″
Program Input System: EIA/ISO
